Tutorial

Paytrace Gateway Integration

Introduction​

The PayTrace integration allows UltraCart merchants to securely process credit card transactions using the PayTrace payment gateway.

This guide walks you through:

  • Creating PayTrace API credentials

  • Configuring the PayTrace gateway in UltraCart

  • Testing and validating your integration

This integration uses OAuth 2.0 token-based authentication, aligning with modern payment security standards. ucdoc-Paytrace Gateway Integrat…

Prerequisites​

Before configuring PayTrace in UltraCart, ensure you have the following:

  • An active PayTrace merchant account

  • Permission to create API Users within PayTrace

  • UltraCart administrative access to:

    • Payment gateway configuration

    • Checkout settings

Prerequisite: Do not use your primary PayTrace login credentials. Always create a dedicated API user for integrations. ucdoc-Paytrace Gateway Integrat…

Step 1: Create a PayTrace API User​

To authenticate UltraCart with PayTrace, you must create a dedicated API user.

  1. Log in to your PayTrace account

  2. Navigate to:
    Users → New User

  3. Select API User as the user type

  4. Enter:

    • Username

    • Password

  5. Assign permissions:

    • Recommended: Select All (or minimum required permissions)

  6. Click Save

The API username and password created here will be used in UltraCart.

Note: The API password is separate from your PayTrace account login password. ucdoc-Paytrace Gateway Integrat…

Step 2: Understand PayTrace Authentication​

PayTrace uses an OAuth 2.0 authentication flow to generate a bearer token.

UltraCart handles this process automatically, but understanding it helps with troubleshooting.

Example Token Request​

curl -X POST https://api.paytrace.com/oauth/token \
  -H "Accept: */*" \
  -d "grant_type=password&username=YourUserName&password=YourPassword"

This request returns a Bearer token, which is used for all subsequent API requests.

Warning: Never expose API credentials in client-side code or public repositories. ucdoc-Paytrace Gateway Integrat…

Step 3: Configure PayTrace in UltraCart​

Navigate to the UltraCart payment gateway configuration:

Main Menu → Configuration → Checkout → Payments → Transaction Gateways

  1. Create or edit a Single Transaction Gateway

  2. Select PayTrace as the gateway type

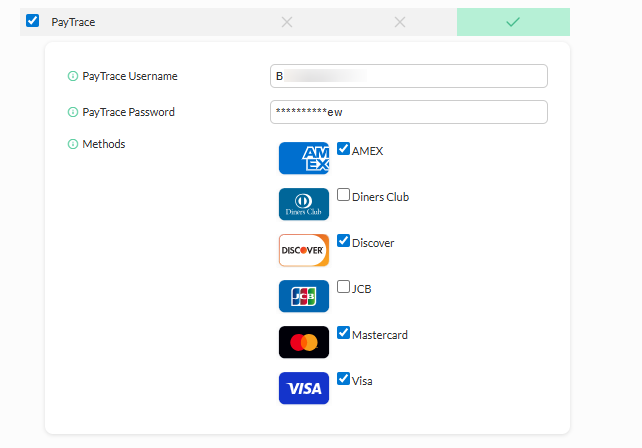

Configuration Fields​


FieldDescription
Gateway TypeSelect PayTrace
API UsernameAPI user created in PayTrace
API PasswordAPI password for the API user
Transaction Source KeyProvided by PayTrace (if applicable)
Test ModeEnable for sandbox/testing
CurrencyMust match your PayTrace account
Authorization TypeAuthorize or Authorize + Capture

Step 4: Save and Test the Configuration​

  1. Click Save

  2. Place a test order in your storefront

  3. Verify:

    • Transaction completes successfully

    • No gateway errors appear in order logs

    • Authorization/capture behavior is correct

Security Best Practices​

Follow these best practices to protect your integration:

  • Use dedicated API users for integrations

  • Assign minimum required permissions

  • Store credentials securely (server-side only)

  • Rotate API credentials periodically

Never expose credentials in:

  • JavaScript

  • Public repositories

  • Client-side applications

Tip: Use PayTrace Protect.js or equivalent client-side encryption tools for secure card handling. ucdoc-Paytrace Gateway Integrat…

Troubleshooting​

Invalid Credentials Error​

Error Example:

Invalid Credentials

Resolution:

  • Verify API username and password

  • Ensure API user is active

  • Reset API password if needed

  • Confirm OAuth request format

Transactions Failing​

  • Confirm the gateway is active

  • Check for:

    • Currency mismatches

    • Authorization type conflicts

  • Review UltraCart order logs for gateway responses

Unable to Generate Token​

Verify the following:

  • Endpoint is correct:

    https://api.paytrace.com/oauth/token

  • Grant type is password

  • Credentials are valid

If issues persist, contact PayTrace support.

FAQ​

Q: Can I use my PayTrace login credentials?​

No. You must create a dedicated API user. Using your primary login is not supported and introduces security risks. ucdoc-Paytrace Gateway Integrat…

Q: Where is the API password generated?​

The API password is created when defining the API user:

Users → New User → API User

Q: Should I give full permissions to the API user?​

  • Initial setup: Select All is acceptable

  • Production: Reduce to only required permissions

Q: Does UltraCart store the OAuth token?​

No action is required. UltraCart manages authentication internally using the credentials you provide. ucdoc-Paytrace Gateway Integrat…

Conclusion​

Integrating PayTrace with UltraCart provides a secure and scalable way to process payments using modern API authentication.

By properly configuring API users and following security best practices, you ensure:

  • Reliable transaction processing

  • Secure handling of payment data

  • Reduced risk of credential exposure
