Channel Partner API - Spreadsheet Import

The spreadsheet import interface for the generic channel partner is intended to allow importing of complete orders from a spreadsheet. There are two methods of processing the spreadsheet:

1. Uploading it through the web interface, or
2. FTPing the file to UltraCart's Virtual FTP server

Irregardless of which way you send the file to UltraCart, the format of the file is the same. In this tutorial we will cover building the file first and then uploading it.

Configuring the Custom Channel Partner

The first thing that needs to happen before you can import orders is to configure the custom channel partner. Channel partners are how UltraCart keeps track of orders that originate from a source other than the UltraCart checkout process. To configure your channel partner go to:

note

Main Menu → Configuration →Custom Channel Partners

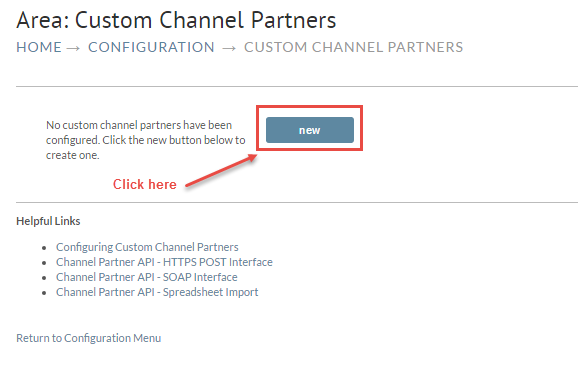

At the 1st screen click the new button.

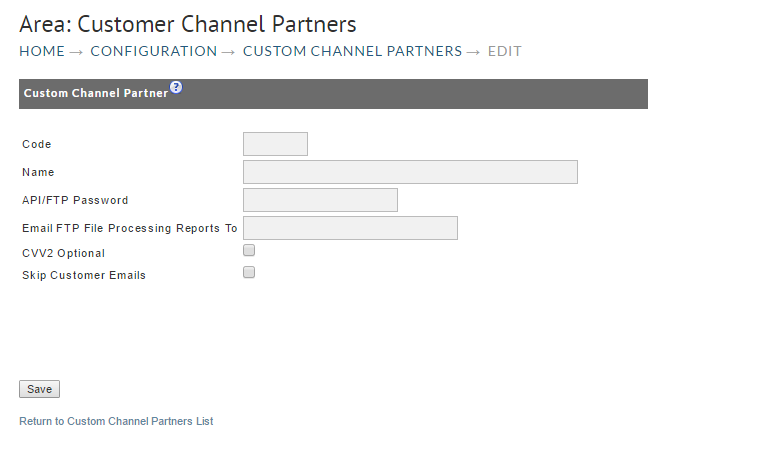

There are four text fields and two check boxes to be completed. Also, two check boxes are to be considerd.


API Credentials

The following are brief descriptions of the fields.

Field	Description	Required
Code	A 1-10 character code identifying the channel partner. We recommend using the initials of the partner as this will be visible when viewing orders within UltraCart	Y
Name	The descriptive name of the channel partner.	Y
API/FTP Password	Create a strong password. This will be the same password used for the API (SOAP or HTTP) as well as the FTP interface.	Y
Email FTP File Processing Reports To	The email address to send processing reports. You can specify multiple emails separated by a comma.	Y

Building the Spreadsheet

UltraCart will support three different formats for the spreadsheet:

• .csv (comma separated values) - Download Channel Partner Template CSV
• .xls (Microsoft Excel 1997-2002 format)
• .xlsx (Microsoft Excel 2007+ format) Download Channel Partner Template (xlsx)

The first row of the spreadsheet must contain headers. The headers need to come from the table below.

Acceptable values for boolean parameters:

info

true: true, TRUE, yes, YES, on, ON, y, Y, 1
false false, FALSE, no, NO, off, OFF, n, N, 0

Header Name	Alternate Header Name	Format	Description	Required
order.channelPartnerOrderId		String	A unique order ID from the external system.	Y
order.paymentMethod		String	The method of payment. Credit Card or Purchase Order	Y
order.noRealtimePaymentProcessing		Boolean	Leaves the order in Accounts Receivable instead of processing the card in real-time.
order.skipPaymentProcessing		Boolean	Skip over the payment processing and move the order on to shipping.
order.considerRecurring		Boolean	If set to true, then we will pass the recurring flag to the gateways that support it (Authorize.Net and PayPal Web Payments Pro)
order.autoApprovePurchaseOrder		Boolean	Automatically approve the purchase order.
order.storeIfPaymentDeclines		Boolean	Store the order in Accounts Receivable if the credit card declines	Recommend - Y
order.treatWarningsAsErrors		Boolean	Treat warnings (like the pre-oder warning) as errors that prevent the order from importing	Defaults to Y
order.storeCompleted		Boolean	Store the order in the completed orders stage of the system. This is used for importing historical orders from other carts.
order.creditCardAuthorizationReferenceNumber		String	If you authorized the order outside of UltraCart, this is the transaction identifier that UltraCart will use to capture the order.
order.creditCardAuthorizationAmount		Number	If you authorized the order outside of UltraCart, this is the amount of the authorization.
order.creditCardAuthorizationDts		Timestamp	If you authorized the order outside of UltraCart, this is the timestamp of the authorization.** Required format: MM/DD/YYYY HH:MM:SS Example ** 07/01/2014 14:23:32 Required format: MM/DD/YYYY HH:MM:SSExample: ** 07/01/2014 14:23:32**
order.creditCardType		String	Visa, MasterCard, AMEX, or Discover	Y - CC Orders
order.creditCardNumber		String	15 or 16 digit credit card number (spaces or dashes OK)	Y - CC Orders
order.creditCardToken		String	Token of the credit card (Stripe.com or other tokenizing gateway supported by UltraCart).
order.creditCardExpirationMonth		Number	Month 1 through 12 (January = 1, December = 12)	Y - CC Orders
order.creditCardExpirationYear		Number	Four Digit Year	Y - CC Orders
order.creditCardExpirationMonthYear		String	The format MM/YY or MM/YYYY
order.creditCardVerificationNumber		Number
order.rotatingTransactionGatewayCode		String	The rotating transaction gateway code to use for this order.
order.purchaseOrderNumber		String	The purchase order number.	Y- Purchase Order
order.billToFirstName		String		Y
order.billToLastName		String		Y
order.billToTitle		String
order.billToCompany		String
order.billToAddress1		String		Y
order.billToAddress2		String
order.billToCity		String		Y
order.billToState		String		Y
order.billToPostalCode		String		Y
order.billToCountry		String	Use the full spelling that UltraCart uses or provide the ISO-3166 two letter country code.	Y
order.billToDayPhone		String
order.billToEveningPhone		String
order.email		String
order.ccEmail		String
order.associatedWithCustomerProfileIfPresent		String	If this is yes, the order will be associated with the customer profile that has the same email (if it exists) and they will receive their discounted pricing.
order.shipToFirstName		String		Y - physical goods
order.shipToLastName		String		Y - physical goods
order.shipToTitle		String
order.shipToCompany		String
order.shipToAddress1		String		Y - physical goods
order.shipToAddress2		String
order.shipToCity		String		Y - physical goods
order.shipToState		String		Y - physical goods
order.shipToPostalCode		String		Y - physical goods
order.shipToCountry		String	Use the full spelling that UltraCart uses or provide the ISO-3166 two letter country code.	Y - physical goods
order.shipToPhone		String		Y - physical goods
order.shipToEveningPhone		String
order.shippingMethod		String	If the order requires shipping then you either need to specify the name of the method in this field, or pass order.leastCostRoute = true and let UltraCart pick the method of shipment	Maybe
order.arbitraryTax		Number	The tax charged by the external system
order.arbitraryTaxableSubtotal		Number	The taxable subtotal the tax was based upon by the external system
order.arbitraryTaxRate		Number	The tax rate used by the external system
order.arbitraryShippingHandlingTotal		Number	The shipping/handling cost charged by the external system
order.taxExempt		Boolean
order.giftMessage		String
order.deliveryDate		Date	If specified, use the format MM/DD/YYYY
order.shipOnDate		Date
order.ipAddress		String	The IP address of the remote customer (pass 127.0.0.1) if not available	Y
order.shipToResidential		Boolean	Will default to a business if not specified	Recommended
order.mailingListOptIn		Boolean	Will default to opted out if not specified	Recommended
order.specialInstructions		String	Special instructions from the customer about shipment
order.screenBrandingThemeCode		String	The screen branding theme code to associate the order with.	Y
order.advertisingSource		String
order.customField1		String	Custom value such as the DNIS of the caller up to 50 characters.
order.customField2		String	Custom value up to 50 characters.
order.customField3		String	Custom value up to 50 characters.
order.customField4		String	Custom value up to 50 characters.
order.customField5		String	Custom value up to 50 characters.
order.customField6		String	Custom value up to 50 characters.
order.customField7		String	Custom value up to 50 characters.
order.taxCounty		String	Tax county name if the state the order is going to charges tax at the county level.
order.affiliateId		String	The affiliate ID to associate the order with.
order.gift		Boolean	True/False if the order is a gift (defaults to false)
order.giftEmail		String	Email to send the gift receipt to.
order.leastCostRoute		Boolean	Either this needs to be True or the name of a shipping method must be specified in *order.shippingMethod*	Maybe
order.leastCostRouteShippingMethods[#]		String	Restrict the least cost routing to these shipping methods.
order.coupons[#]		String	Coupons to apply to the order.
order.items[#].itemId	order.items.itemId	String	Item ID of the item	Y
order.items[#].quantity	order.items.quantity	Integer	Quantity to purchase	Y
order.items[#].arbitraryUnitCost	order.items.arbitraryUnitCost	Number	Specific price for the item.
order.items[#].autoOrderSchedule	order.items.autoOrderSchedule	String	Auto order schedule if the item is a customer selectable auto order. Should be one of the following values: - Weekly - Every 10 Days - Biweekly - Every 24 Days - Every 28 Days - Monthly - Every 45 Days - Every 2 Months - Every 3 Months - Every 4 Months - Every 6 Months - Yearly
order.items[#].upsell	order.items.upsell	Boolean	Flag indicating the item was an upsell (default to false)
order.items[#].autoOrderLastRebillDate	order.items.autoOrderLastRebillDate	Date	The last time the order was rebilled. This will determine when the next shipment occurs. This is used for importing historical auto orders from another system. The format for the date is MM/DD/YYYY.	Y - if importing historical orders for items that have auto order schedules.
order.items[#].options[#].name	order.items.options[#].name	String	Name of the option	Y - if the item has options
order.items[#].options[#].value	order.items.options[#].value	String	Value of the option	Y - if the item has options

Multiple Rows Per Order or Multiple Columns for Items

Order data by it's very nature is multi-dimensional which can be difficult to represent in a spreadsheet. If you are using multiple columns in your spreadsheet to represent the item data you would construct the headers like this:

order.items[0].itemId	order.items[0].quantity	order.items[1].itemId	order.items[1].quantity
SHIRT	1	PANTS	1

An optional method is to use multiple rows to represent the items. In this scenario the other non-item data is repeated on all the rows and the item data varies by row. UltraCart will roll up the rows based upon the order.channelPartnerOrderId value.

order.items.itemId	order.items.quantity
SHIRT	1
PANTS	1

Channel Partner Uses Different Item SKU?

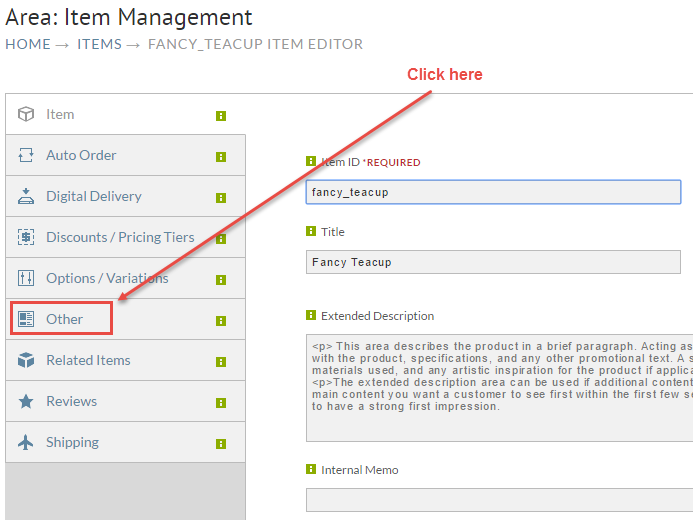

Not a problem. At the UltraCart Item Management screen, click on the appropriate Item Id. Inside the Item editor click on the Other tab.

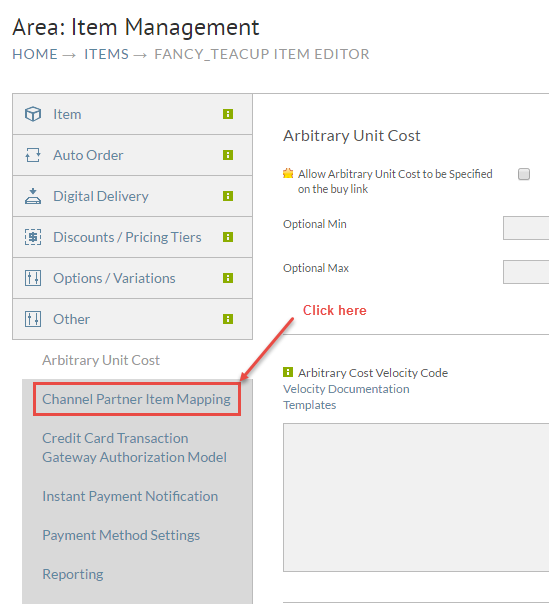

Another set of dark grey Tabs will appear below the Other Tab. Click Channel Partner Item Mapping.

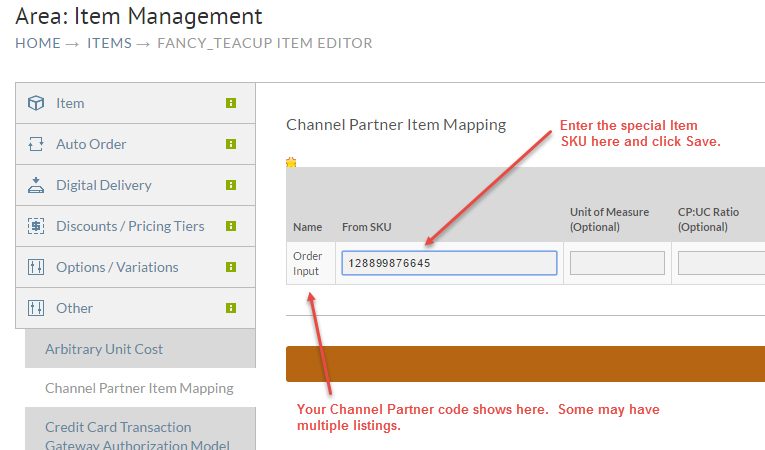

Enter your custom SKU as shown below. UltraCart will transmit the SKU to the UltraCart item ID during the import process.


Uploading via the Web Interface.

First navigate to:

note

Main Menu → Configuration → Checkout → Custom Channel Partners

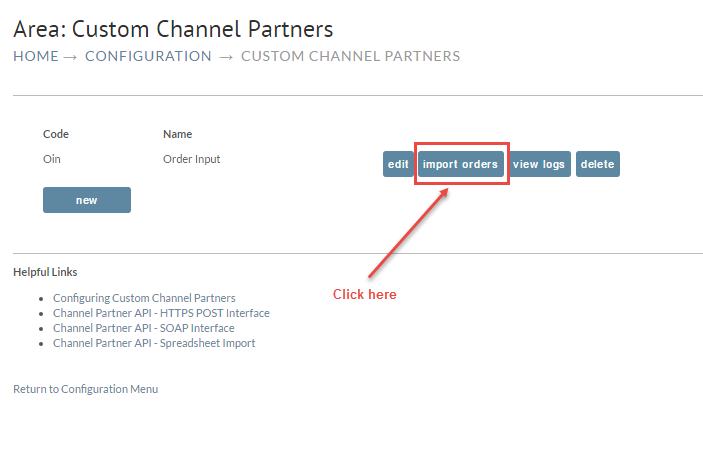

Click on the "import orders" button as shown below.

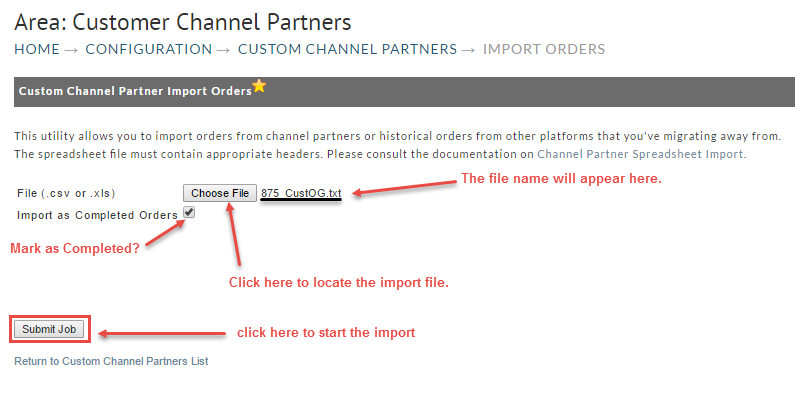

On the next screen click the Browse button, navigate within your system and locate the file to be imported. Want all the imported orders marked as "completed"? Click the check box as shown below. Lastly, click the Submit Job button at the bottom.

info

Use this flag if your are importing historical orders. This will keep them from processing payments on those orders.

note

If you import orders associated with items that have an auto order schedule configured, they WILL setup an auto order schedule. This even applies to historical orders if the "Import as completed orders" check box is selected.

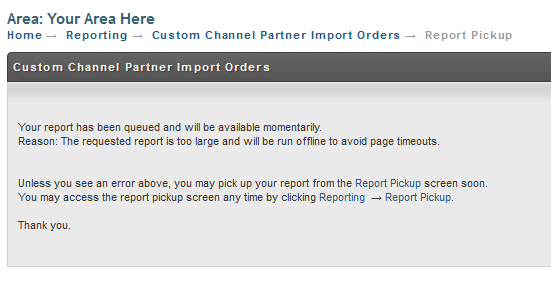

Once you submit the job you will be shown a screen informing you that the results will be available soon under the report pickup.

Spreadsheet Processing Errors:

Error	Remediation steps
Invalid column name [order.items[#].itemId]. Please see Channel Partner API -	Edit the column header text and replace the # with a number, starting with 0 and adding additional columns for additional items in a single order as described in the section above -> [order.items[0].itemId] (See previous section of this document "Multiple Rows Per Order or Multiple Columns for Items" for more details.)
Invalid column name [order.items[#].quantity]. Please see Channel Partner API -	Edit the column header text and replace the # with a number, starting with a 0 and adding in in additional columns for additional items in a single order -> [order.items[0].quantity (See previous section of this document "Multiple Rows Per Order or Multiple Columns for Items" for more details.)

FTPing the File to UltraCart's Virtual FTP Server

You can also FTP the file to the FTP server. To do this connect to:

Setting	Value
Server	merchantftp.ultracart.com
Username	/
Password	The FTP/API password configured for this channel partner.

Once you connect to the server you will see the following folders:

Directory	Meaning
/import/in/	Deposit the spreadsheets into this folder. Once a file is stored it can not be read again, but can be deleted if it was placed there erroneously
/import/out/	The processing reports will appear in this folder.

Processing of files occurs once per hour. If you configured the "Email FTP File Processing Reports To" field on the custom channel partner then an email with the processing report will be sent immediately after the processing is complete. This is a good way to keep tabs on the processing from a user perspective.

info

UltraCart will delete any processing reports in the /import/out/ folder older than sixty days.

note

You must transfer the order data over FTP SSL or PGP encrypt the file if you are using FTP. To use PGP encryption make sure you use the UltraCart public PGP key uc-file-transfer-pgp-public-2015.pgp

Processing Reports

The reports produced after processing contain three columns represented in a CSV format. The table below shows an example.

channelPartnerOrderId	ultraCartOrderId	error
1000		Invalid credit card number.
1000		Billing first name not specified.
1001	DEMO-00123456
In the example above the channel partner order 1000 produced two errors. The channel partner order 1001 imported successfully as UltraCart order ID DEMO-00123456. If you upload the spreadsheet via the web interface then you will retrieve the processing report from the report pickup section. If you upload it to the FTP interface then you can retrieve the processing report from /import/out/ on the FTP server. ## Shipment Confirmation When orders that are imported via the Channel Partner API are shipped, UltraCart automatically produces a shipment confirmation CSV file and places it on the FTP server under /export/shipment/. The format of the CSV file looks like this:	channelPartnerOrderId	ultraCartOrderId

channelPartnerOrderId	ultraCartOrderId	shippingMethod	trackingNumber
1001	DEMO-00123456	USPS: Priority Mail	1234567890
1002	DEMO-00123457	USPS: First Class Mail	1234567891
1003	DEMO-00123458	UPS: Ground	1Z1234567890
1003	DEMO-00123458	UPS: Ground	1Z1234567891

info

If an order contains multiple tracking numbers then it will appear as multiple rows in the spreadsheet with the same channelPartnerOrderId and ultraCartOrderId.

note

UltraCart will automatically remove shipment confirmations older than 60 days old.
