This is Version 1 of the UltraCart REST API. It is now legacy. It will remain forever, but no new development will be done.

Please see Version 2 for new development. Version 2 contains language specific SDKs, more functionality, and reduced API call counts.

Version 2 Main Documentation

Version 2 Supplemental Documentation

warning

Additional Note, August 2020:

To prevent anyone from using this code in a new installation, several key samples have been removed. These samples referred to php scripts that are no longer compatible with the UltraCart engine. You should not be using this javascript anymore. This documentation exists only for a reference for old legacy implementations.

Changes

(this list was started Aug 2014)

August 2014

Added localization to support non US currencies. There are two ways to set the currency of the shopping cart.

1. Updating the cart with cart.currencyCode will cause the localized fields to display in that currency.

2. Adding an item to the cart which has the item cost in a different currency will set the cart to that currency. Only the first item added alters the currency of the cart.

You will now see additional fields on the Cart and CartItem ending with "Localized" and "LocalizedFormatted". The localized fields contain currency amounts in the local currency. The formatted fields are strings containing currency symbols for easy use in templates and mark up.

Introduction (Things you'll wish you read first)

The UltraCart REST API aims to be a lightweight protocol for tying a checkout page(s) to the UltraCart back end.

Merchant ID Required

info

Every call needs a merchant id (our merchant id is DEMO). We need to know who you are. There are three ways to provide the merchant id to the server:

1. Query Parameter: _mid=DEMO

2. HTTP Header: 'X-UC-Merchant-Id': 'DEMO'

3. Cookie named UltraCartMerchantID

Most of the examples below use the http header since it's easy to use with jQuery. If you wished to do it for all your ajax calls, you could execute this javascript:

jQuery.ajaxSetup({ cache: false, headers: {'X-UC-Merchant-Id': 'DEMO', "cache-control": "no-cache"});

However, that makes each call less atomic (and jQuery doesn't recommend it). Still, it's an option and may work well with your site.

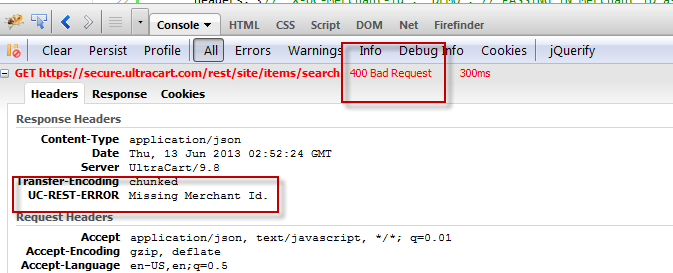

If you receive an error "Missing Merchant ID", you've forgotten to do one of the above.

Now, in case you're wondering why the three methods use different names...

1. We made the query parameter as short as possible to keep the urls as short as possible. We used an underscore to denote "meta data" to the call.

2. We follow common practices for naming custom http headers. While the X- prefix is officially out of vogue, we still think it looks cool.

3. The cookie 'UltraCartMerchantID' is used in hundred of existing UltraCart checkout pages. So it made sense to stick with that cookie name.

Where are the errors?

warning

When something doesn't work or you get an error, open your browser console and view the headers. Look for the error.

then fix it.

Can't? Then get on github.com. Ask for help here.

Note Regarding Support for API

info

API troubleshooting

UltraCart's free support does not cover API development questions or troubleshooting of custom checkout pages.

Please post your questions to the "Issues" section of the github.com API reponsitories, which are monitored and responded to by the API developers. Please allow 24-48 hours for a reply.

Additional API support and troubleshooting services can be purchased at $100/hr (1 hour minimum) via UltraCart Professional Services.

(Scheduling of paid for support will be determined by Professional Services personnel.)

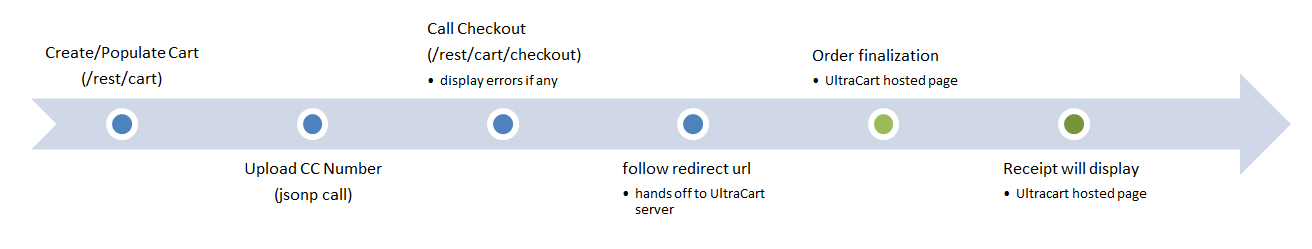

/rest/cart/checkout is not the end

note

/rest/cart/checkout is NOT THE END! It's the beginning of the end. If the response from checkout has no errors, you must redirect the browser to the url found in checkoutResonse.redirectToUrl. That finishes the order. Any errors during that phase (card declined) will send the browser back to checkoutRequest.redirectOnErrorUrl, which is usually set to your checkout page. It's a circle, one that handles shipping companies and payment gateway timeouts without timing out the browser. It also handles any upsell gauntlets. So make sure you follow the redirect!

Do this or you'll never complete an order...

By July 15th, 2015, all UltraCart checkouts must use Hosted Fields to collect credit card information. This replaces the old storeCard function. This is a requirement for PCI 3.0. UltraCart staff has already updated many sites and the average time to retrofit an existing site to using Hosted Fields has taken under 20 minutes. Some of them have been switched over in less than 5 minutes. While the implementation of Hosted Fields is gory, the installation of them is trivial. Please see this page for details.

Reference Implementations

All reference implementations will be hosted on github.com under the UltraCart tree ( https://github.com/UltraCart ). You are invited and encouraged to participate in the development of these interfaces. We hope you will use, clone, fork, and help improve these interfaces by filing suggestions and bug reports.

Current Implementations

Name	Design Goal	Location	Comments
responsive checkout	single page checkout, mobile friendly	https://github.com/UltraCart/responsive_checkout
two page trial	simple, geared toward trial offers		coming soon

Object Model

These json objects are used with the Cart REST API. The documentation below is shared with checkout versions 1.0 and 2.0. So you will see references to those libraries as well. Please consult the API section below the REST specific usage.

Cart Objects

Field	Type	Comment
cartId	string	The unique ID for the cart. This needs to be stored as a cookie on the customer's browser so that the cart can be retrieved.
merchantId	string	The char(5) merchant designation (created during sign up)
errors	string[]	an array of errors returned from a call.  This property should always be consulted after a call returns and messages displayed to the end customer.
advertisingSource	string	Advertising source the customer selected or entered.
affiliateId	string	The ID of the affiliate associated with this cart. You can set this field to manually assign an order to a specific affiliate. If no affiliate is associated with the order then this field will be null.
affiliateSubId	string	The Sub ID of the affiliate associated with this cart. The same comments for affiliateId apply to this field as well.
amazonMerchantId	string	The merchant's Amazon Seller ID as configured in the UltraCart system.
amazonOrderReferenceId	string	The reference id provided by Amazon once the customer has initiated checkout with them. If this is non-null and cart.paymentMethod is "Amazon", the order will be processed through Amazon. This cart example has all of the amazon code plumbed. Take some time to understand it. It is NOT a trivial few lines of code to make it work seamlessly. https://github.com/UltraCart/rest_api/tree/master/cart_example
amazonWidgetUrl	string	The url for the amazon widget script. This will be production or sandbox depending on your UltraCart configuration. The example link in the amazonOrderReferenceId does not use these values since the scripts are loaded statically.
amazonButtonUrl	string	The url for the amazon button script. This will be production or sandbox depending on your UltraCart configuration.
arbitraryShippingHandlingTotal	number	Override field allowing merchant to override the shipping and handling calculated by the system. To use this field, the Shipping and Handling must be configured to allow overrides.
arbitraryTax	number	Override field allowing merchants to override calculated tax. To use this field, the Tax must be configured to allow overrides.
arbitraryTaxRate	number	Override field allowing merchants to override calculated tax rate. To use this field, the Tax must be configured to allow overrides.
arbitraryTaxableSubtotal	number	Override field allowing merchants to override the taxable subtotal. To use this field, the Tax must be configured to allow overrides.
baseCurrencyCode	string	The default currency code for the merchant. For most merchants, this will be USD, but can be changed in the merchant's configuration. see also currencyCode Valid values are: AUD Australian Dollar CAD Canadian Dollar EUR Euro JPY  Japanese Yen MXN  Mexican Peso NOK  Norwegian Krone NZD  New Zealand Dollar GBP  Pound Sterling RUB  Russian Ruble SGD  Singapore Dollar SEK  Swedish Krona CHF  Swiss Franc TRY  Turkish New Lira USD  US Dollar BRL  Brazilian Real
billToAddress1	string	Bill to address line 1
billToAddress2	string	Bill to address line 2
billToCity	string	Bill to city
billToCompany	string	Bill to company
billToCountry	string	Bill to country. Must be a valid country name from the getAllowedCountries() API call.
billToDayPhone	string	Bill to day phone
billToEveningPhone	string	Bill to evening phone
billToFirstName	string	Bill to first name
billToLastName	string	Bill to last name
billToPostalCode	string	Bill to postal code
billToState	string	Bill to state
billToTitle	string	Bill to title
ccEmail	string	CC Email address
collectCreditCardVerificationNumber	boolean	True if the CVV2 should be collected for this merchant.
comments	string	customer comments. this is usually collected via a textarea field. Added 12/2/2013
coupons	CartCoupon[ ]	Coupons that have been applied to the cart.
creditCardExpirationMonth	Integer	Credit card expiration month 1 = January 12 = December
creditCardExpirationYear	integer	Credit card expiration year. Must be a four digit year.
creditCardNumber	string	Credit card number As of January 2014, there is a new method for collecting credit card numbers. Please collect card numbers through the card store script. This optional method will become a requirement in the very near future.
creditCardToken	string	Credit card token (if you are using a tokenizing gateway like Stripe.com)
creditCardType	string	Type of credit card. See the CREDIT_CARD_TYPE_ constants in the checkoutapi.js file for valid values.
creditCardTypes	string[]	An array of credit card types (Visa, Mastercard, etc.) that are currently accepted. Used to generate drop down lists.
creditCardVerificationNumber	string	Credit card verification number 4 digits for American Express and 3 digits for all other types of credit cards.
currencyCode	string	The currency of the cart. The default is the merchant default. Change this value to set the currency of the cart to a different value. If the first item added to the cart has a default currency other than USD, the cart currency will change to match the first item automatically. (see also baseCurrencyCode)
customerProfileCreditCardId	Integer	The oid (object id) of a stored (on file) credit card to use with the checkout. Supply this to us a credit card on file. When this is value is passed in to an update call, it will return back a cart with all the card information populated (number masked). If you wish to remove a stored credit card from an order, set this property to 0 (zero). That will reset it. The credit card id is found in the cart object of a logged in customer at cart.customerProfile.creditCards[0].id UltraCart does not store CVV values. If you chose to allow stored credit cards, you must configure your payment gateway not to require CVV values. If a stored card is used, UltraCart will not validate/require a CVV. A list of stored credit cards can be obtained from the MyAccount REST API. The customer must be logged in to retrieve a list of credit cards on file. There are two ways to create a customer account (profile). The /rest/cart methods do not actually create the customer profile until the order completes. At that time, it will store the addresses used and credit cards (if your merchant account is configured to do so). The MyAcccount REST API does create the customer immediately so it can be used with the MyAccount customer portal. Both APIs use a shopping cart as the underlying cookie/state maintenance. So a customer logged into one is automatically logged into the other.
customField1	string	A custom field to store up to 50 characters.
customField2	string	A custom field to store up to 50 characters.
customField3	string	A custom field to store up to 50 characters.
customField4	string	A custom field to store up to 50 characters.
customField5	string	A custom field to store up to 50 characters.
customField6	string	A custom field to store up to 50 characters.
customField7	string	A custom field to store up to 50 characters.
customerProfile	CustomerProfile	If loggedIn, this variable will contain the CustomerProfile for the current session.
deliveryDate	Date	Delivery date (optional)
email	string	Email address
emailConfirm	string	Second copy of email address used to confirm the customer entered it correctly
exchangeRate	number	The conversion rate between merchant default and local currencies
giftCertificate	string	Gift certificate code
giftCertificateAmount giftCertificateAmountLocalized giftCertificateAmountLocalizedFormatted	number number string	Gift certificate amount
giftCertificateRemainingBalanceAfterOrder giftCertificateRemainingBalanceAfterOrderLocalized giftCertificateRemainingBalanceAfterOrderLocalizedFormatted	number number string	The balance remaining the gift certificate if its initial value was greater than the cart total.
giftCharge giftChargeLocalized giftChargeLocalizedFormatted	number number string	Gift charge
giftEmail	string	Email address of the person receiving this purchase as a gift
giftEmail	string	Gift Email address
giftMessage	string	Gift message
giftWrapCost giftWrapCostLocalized giftWrapCostLocalizedFormatted	number number string	Gift wrap cost
hasAmazon	boolean	This will be true if the merchant has "Pay with Amazon" configured properly AND the cart supports it, i.e. the items can be process through Amazon Payments. If the cart is empty, this will be false, since you can't checkout with zero items.
hasPayPal	boolean	True if the merchant has PayPal enabled.
ipAddress	string	IP Address of the customer. Used for geo-location of shipping estimates.
items	CartItem[ ]	All the items in the cart.
liftGate	boolean	True if this purchase will require delivery by lift gate, false (default) otherwise.
loggedIn	boolean	true if a customer profile is active, false if otherwise
mailingListOptIn	boolean	Whether the customers wants to receive news and special offers via email.
needShipping	boolean	true if the cart needs shipping calculated.
needPayment	boolean	true if the cart should collect payment. This may seem a little useless since it would stand to reason that any time the total is greater than zero payment should be collected. However, there are outside cases where this flag makes the difficult easy. For example, if a customer purchases a free product that is tied to an auto order, then the total of the cart is zero, but payment must be collected for the recurring item to be charged against. This flag makes those scenarios automatic where they would otherwise be impossible to determine without some hardcoded measures. Note: Added January 2014. Only available with the REST API
password	string	the password is only used during the login (or register) process to log a customer in. It is not populated on any returned objects, so it is lost (purposely) after login. Constraints: 30 characters max.
payPalButtonAltText	string	Alt text to use on the PayPal express checkout image
payPalButtonUrl	string	URL of the PayPal express checkout image
payPalCompatible	boolean	True if this cart is compatible with PayPal
paymentMethod	string	Type of payment method. See the PAYMENT_METHOD_ constants in the checkoutapi.js file for valid values.
purchaseOrderNumber	string	Purchase order number
rtgCode	string	Specify the Rotating Transaction Gateway for this checkout experience.
screenBrandingThemeCode	string	The screen branding theme associated with the cart.
shipOnDate	Date	Ship on date (optional)
shipToAddress1	string	Ship to address line 1
shipToAddress2	string	Ship to address line 2
shipToCity	string	Ship to city
shipToCompany	string	Ship to company
shipToCountry	string	Ship to country. Must be a valid country name from the getAllowedCountries() API call.
shipToFirstName	string	Ship to first name
shipToLastName	string	Ship to last name
shipToPhone	string	Ship to phone
shipToPostalCode	string	Ship to postal code
shipToResidential	boolean	True if the address is residential.
shipToState	string	Ship to state
shipToTitle	string	Ship to title
shippingHandling shippingHandlingLocalized shippingHandlingLocalizedFormatted	number number string	Shipping and handling cost This must be set manually when assigning the shippingMethod! The backend will not calculate this during cart updates. Shipping costs are extremely slow to calculate because numerous third party companies (Fed Ex, UPS, USPS) must be contacted etc. Therefore, when you assign the shipping method, you must also set the price in order the the customer to see it correctly reflected during the ordering process. When the order is submitted, the actual shipping is recalculated and set by the back end. This prevents any clever customers from trying to override the cost by putting zero in the field.
shippingHandlingDiscount shippingHandlingDiscountLocalized shippingHandlingDiscountLocalizedFormatted	number number string	Shipping and handling discount (because of coupon)
shippingHandlingWithDiscount shippingHandlingWithDiscountLocalized shippingHandlingWithDiscountLocalizedFormatted	number number string	Shipping and handling cost after discount applied.
shippingMethod	string	Shipping method
specialInstructions	string	Special instructions for delivery.
storeCreditCard	boolean	If true and the customer has logged in (cart.customerProfile != null and cart.loggedIn == true), then the credit used during the purchase is stored in the customer's profile. UltraCart considers it good ettiquette to prompt the user to store their credit card. On the normal checkout pages, this is done via a checkbox.
subtotal subtotalLocalized subtotalLocalizedFormatted	number number string	Subtotal
subtotalDiscount subtotalDiscountLocalized subtotalDiscountLocalizedFormatted	number number string	Subtotal discount (because of coupon)
subtotalWithDiscount subtotalWithDiscountLocalized subtotalWithDiscountLocalizedFormatted	number number string	Subtotal after discounts have been applied
surcharge surchargeLocalized surchargeLocalizedFormatted	number number string	Credit card surcharge amount
tax taxLocalized taxLocalizedFormatted	number number string	Tax
taxCounty	string	The tax county assigned to this customer. See method getTaxCounties().
taxExempt	number	True if the customer is tax exempt
taxRate	number	Tax rate
taxableSubtotal taxableSubtotalLocalized taxableSubtotalLocalizedFormatted	number number string	Taxable subtotal
taxableSubtotalDiscount taxableSubtotalDiscountLocalized taxableSubtotalDiscountLocalizedFormatted	number number string	Taxable subtotal discount (because of coupons)
taxableSubtotalWithDiscount taxableSubtotalWithDiscountLocalized taxableSubtotalWithDiscountLocalizedFormated	number number string	Taxable subtotal after discounts.
total totalLocalized totalLocalizedFormatted	number number string	Total
upsellPathCode	string	A string dictating which upsell path code should be followed. By specifying this path, this will override any upsells normally followed based on the cart contents. Note: Added Dec, 2013, Available only for the Checkout REST API.

CartCoupon Objects

info

Transcluded from CartCoupon.

CartItem Objects

info

Transcluded from CartItem.

CartItemOption Objects

info

Transcluded from CartItemOption.

CartItemMultimedia Objects

info

Transcluded from CartItemMultimedia.

CartKitComponentOption Objects

info

Transcluded from CartKitComponentOption.

CheckoutTerms Objects

info

Transcluded from CheckoutTerms.

CheckoutRequest Objects

This is the object submitted to the REST API when the cart is done and ready to be turned into an order.

Field	Type	Description
cart	Cart	The cart object

Field	Type	Description
cart	Cart	The cart object. It is usually updated during the checkout, so be sure to update your local copy with this one when it returns if there were errors.
redirectToUrl	string	If errors is empty or zero length, use this value to do a location.href = response.redirectToUrl
errors	string[ ]	any errors should be displayed to the user, giving them a chance to fix any problems before checking out again.

CityStateZip

info

Transcluded from CityStateZip - Checkout API Object.

CustomerProfile

info

Transcluded from CustomerProfile.

CustomerProfileAddress

info

Transcluded from CustomerProfileAddress.

CustomerProfileCreditCard

info

Transcluded from CustomerProfileCreditCard.

FinalizeOrderRequest

This is the object submitted to the REST API when the cart is done and ready to be turned into an order. This is different from /rest/cart/checkout. checkout is the beginning of a handoff to the order processing screens. It is the call that should be used ALWAYS when creating a javascript checkout. This object exists for server side applications such as call centers that are not running in a client browser to use when calling /cart/rest/finalizeOrder.

note

** NEVER USE THIS OBJECT IN A CLIENT BROWSER.** This object requires a back end login (username/password). It is never safe to supply that to a client browser.

Field	Type	Description
cart	Cart	The cart object
credentials	Credentials	Credentials has three fields: 1. merchantId 2. login 3. password The merchant id is your 3-5 character merchant id. The login and password are valid username/password credentials for access secure.ultracart.com. DO NOT USE A NORMAL LOGIN FOR THIS, AND NEVER EVER USE THE OWNER LOGIN FOR THIS CALL. 1. Create a new user. 2. Remove all permissions for the user except API Access. 3. In the Edit User screen, when you click "API Access", enter the IP addresses that your server will be running on to further prevent misuse.
options	FinalizeOrderOptions	optional hash of processing options. See FinalizeOrderOptions for specifics.

FinalizeOrderResult

This object is the return value for a successful call to /rest/cart/finalizeOrder.

Field	Type	Description
successful	boolean	true if the order was created, else false
orderId	string	The order id of the newly created order
receiptText	FinalizeOrderOptions	The preformatted plain text order receipt. It's not very pretty. It's recommended you display it in a fixed screen like a tag, etc.
errorMessages	string Array	a list of errors that might have occurred
order	Order	ADDED Aug-2013: a json object representing the order. useful for extracting fields without have to parse receiptText.
nextCart	Cart	ADDED Mar-12-2015 A new cart object with the customer already logged in. This will be null unless the FinalizeOrderOptions.setupNextCart is true and the customer was successfully logged in for the order being currently finalized.

FinalizeOrderOptions

Field	Type	Description
noRealtimePaymentProcessing	boolean	if true, validates the credit card information, but does not authorize or capture funds at the time of order.
skipPaymentProcessing	boolean	if true, skips payment processing and places the order in Accounts Receivable
autoApprovePurchaseOrder	boolean	automatically approves any PO provided
storeIfPaymentDeclines	boolean	if true, the order is placed in Accounts Receivable if payment declines. If false, an error is returned and the order is not completed.
creditCardAuthorizationReferenceNumber	string	If the credit card was already authorized in a different system, the next three fields provide all the information needed to capture funds
creditCardAuthorizationAmount	number	the amount the card was authorized for
creditCardAuthorizationDate	string	ISO8601 format string 20130603T170226-0400 year 2013 month 06 day 03 "T" hour 17 (5 pm) minute 02 second 26 TZ -0400 (EST with daylight savings)
channelPartnerOid	number	If this order is originating with a specific call center, enter its UltraCart identifier here to correlate the order in the UltraCart system
channelPartnerOrderId	string	The external channel partner order id
setupNextCart	boolean	If true, AND IF the customer is logged in, a new cart is created with the customer already logged in. This was created so that a logged in customer could place an order and then be redirected to the MyAccount pages seamlessly. The next cart will be part of the FinalizeOrderResult. (Added March 12, 2015)
storeCompleted	boolean	If true, the order skips Accounts Receivable and the Shipping Department and is marked Completed.

Distance

info

Transcluded from Distance.

Gift Settings

info

Transcluded from GiftSettings.

Gift Wrap

info

Transcluded from GiftWrap.

Item

info

Transcluded from Item.

ItemAttribute

info

Transcluded from ItemAttribute.

ItemMultimedia

info

Transcluded from ItemMultimedia.

ItemMultimediaThumbnail

info

Transcluded from ItemMultimediaThumbnail.

ItemOption

info

Transcluded from ItemOption.

ItemOptionValue

info

Transcluded from ItemOptionValue.

Order

The Order is returned as part of FinalizeOrderResult.

tip

Every money field below is a number value. The number field has a corresponding string field with the suffix of 'Formatted'. These formatted fields contain the currency sign and decimal places. You should use the formatted fields wherever possible. Doing currency conversions of past orders is extremely complicated.

Field	Type	Comment
labels	hash	this hash contains all the labels for the various fields below. This hash is powerful because it contains the mappings you specify in the back end "screen branding' section. See the order labels section for individual listings.
merchantId	string	your merchant id
customerProfileId	int	customer's internal identifier
orderId	string	order id
rejected	boolean	true if the order was rejected
themeCode	string	the theme code applied to this order. See screen branding. This code is often used when creating buy links to apply the proper look and feel to an order page. Some merchants only have one theme. Some merchants have 50.
creationDate	string	ISO-8601 format. When the order was created
creationDateFormatted	string	DD-MMM-YYYY format. When the order was created
shipOnDate	string	ISO-8601 format. When the order was requested to ship on.
shipOnDateFormatted	string	DD-MMM-YYYY format. When the order was requested to ship on.
saturdayDelivery	boolean	true if the order is set for Saturday delivery
rejectedDate	string	ISO-8601 format. When the order was rejected (null if it hasn't been)
rejectedDateFormatted	string	DD-MMM-YYYY format of when the order was rejected, if it was.
quoteExpirationDate	string	ISO-8601 format. If this order is a quote, when the quote expires.
quoteExpirationDateFormatted	string	DD-MMM-YYYY format. If this order is a quote, when the quote expires.
status	string	Completed, Rejected, Quote Sent, Quote Requested, Pre-Order Item, Pending
testOrder	boolean	true if this order was a test
shippingMethod	string	a bare bones description of the shipping method
shippingMethodName	string	a friendly version of the shipping method. This should be preferred for display over shippingMethod
shippingMethodDetailed	string	an elaborate string contain shippingMethodName and any features such as lift gates and ship to residential,
shippingMethodCompany	string	UPS, FedEx, etc.
shipping3rdPartyAccountNumber	string
email	string
ccEmails	string[ ]	an array of email addresses who were cc'd on the order.
giftEmail	string	the gift recipient's email address
billToCompany	string
billToTitle	string
billToFirstName	string
billToLastName	string
billToAddress1	string
billToAddress2	string
billToCity	string
billToState	string
billToPostalCode	string
billToCountry	string
billToDayPhone	string
billToEveningPhone	string
shipToCompany	string
shipToTitle	string
shipToFirstName	string
shipToLastName	string
shipToAddress1	string
shipToAddress2	string
shipToCity	string
shipToState	string
shipToPostalCode	string
shipToCountry	string
shipToDayPhone	string
shipToEveningPhone	string
gift	boolean	true if the order is a gift
liftGate	boolean	true if the order requires a lift gate to deliver.
shipToResidential	boolean	true if the delivery is a residence
hidePaymentInformation	boolean	whether or not to show payment information. Imagine the scenario where the cost is zero and/or gift certificates were used.
refundPresent	boolean	duplicate of hasRefund. Use hasRefund, as this field is deprecated and will be removed without warning.
taxShipping	boolean	is shipping taxed? this affects the display of subtotal information (tax before subtotal or subtotal before tax).
taxCounty	string
referralCode	string
advertisingSource	string
paymentMethod	string	Credit Card, PayPal Order, etc. Supported payment methods as of 6/2013 (list may change): Check Credit Card Credit Card Fax In PayPal eCheck Purchase Order Unknown Money Order Wire Transfer COD CASH SafetyPay Amazon SC SkyMall Smart Bargains Quote Request
paymentNote	string	A friendly working of the paymentMethod. For display purposes, use this value instead of paymentMethod. It will always read the same or better.
cardType	string	The type of credit card used. VISA, MasterCard, etc.
cardNumber	string	masked. last four digits.
coupons	Coupon	The coupon class contains two simple fields: code and description
items	Item[ ]	The items for this order
giftWrapTitle	string	the name of the gift wrap
giftWrapCost / giftWrapCostFormatted	number / string
hasDiscount	boolean	true if a discount was made somewhere (often useful for adding an extra table column, etc.)
hasRefund	boolean	true if a refund was made somewhere (often useful for adding an extra table column, etc.)
subtotalBeforeDiscount / subtotalBeforeDiscountFormatted	number / string
discount / discountFormatted	number / string
subtotal / subtotalFormatted	number / string	subtotal with any discounts and refunds already applied
subtotalRefunded / subtotalRefundedFormatted	number / string
taxRate / taxRateFormatted	number / string
shippingHandlingDiscount / shippingHandlingDiscountFormatted	number / string
shippingHandlingTotal / shippingHandlingTotalFormatted	number / string	total with any discounts and refunds already applied.
shippingHandlingRefunded / shippingHandlingRefundedFormatted	number / string
tax / taxFormatted	number / string	tax with any refund already applied
taxRefunded / taxRefundedFormatted	number / string
giftCharge / giftChargeFormatted	number / string
surcharge / surchargeFormatted	number / string
showInsureShip	boolean	true if this order used InsureShip and the amounts should be shown. InsureShip is no longer available. This would only apply to old legacy orders. It's doubtful you need to consider this field.
insureShipCost / insureShipCostFormatted	number / string	insure ship cost
insureShipRefunded / insureShipRefundedFormatted	number / string	value of any insure ship refunded
total / totalFormatted	number / string	grand total
totalRefunded / totalRefundedFormatted	number / string	of the total, this amount was refunded
showCurrencyWarning	boolean	true if the currency warning (next line) should be shown.
currencyWarning	string	this is the standard currency warning if the order was placed in a different currnency. It contains a nicely formatted message to show to the customer.
giftCertificateCode	string	the gift certificate code. If the gift certificate was a credit card type, the code will be masked.
giftCertificateAmount / giftCertificateAmountFormatted	number / string	the amount used of the gift certificate
giftMessage	string[ ]	array of gift message lines when this field was entered, newlines were captured to preserve the look. so this field is an array of strings broken by newlines. You may join them or iterate them as desired.
specialInstructions	string[ ]	array of special instructions text when this field was entered, newlines were captured to preserve the look. so this field is an array of strings broken by newlines. You may join them or iterate them as desired.
comments	string[ ]	array of comments when this field was entered, newlines were captured to preserve the look. so this field is an array of strings broken by newlines. You may join them or iterate them as desired.
trackingNumbers	string[ ]	array of tracking numbers
orderCase	Case	See the case object above. If there is a case (customer feedback) associated with this order, it will be populated in this value.

Order Labels

The order labels are formatted labels for use when displaying an order. They should be used whenever possible.

The default value is what is used if you have not configured anything custom in your Checkout Text section of the Configuration area.

Hash Key	Default
quoteRequestIdField	Quote Request ID
requestDateField	Request Date
expirationDateField	Quote Expiration Date
orderIdField	Order ID
sbtField	SBT
orderDateField	Order Date
billToHeader	Bill To
shipToHeader	Ship To
jobTitleField	Job Title
titleField	Title
nameField	Name
companyField	Company
addressField	Address
cityField	City
stateField	State
zipField	Zip
countryField	Country
emailField	Email
ccEmailField	CC Email
giftEmailField	Gift Email
giftField	Gift
phoneField	Phone
eveningPhoneField	Evening Phone
taxCountyField	Tax County
shippingMethodField	Shipping Method
residential	Residential
liftGate	Lift Gate
shipOnDateField	Ship on Date
deliveryDateField	Delivery Date
shipOnAccountField	Ship on Account
advertisingSourceField	Advertising Source
wrappingPaperField	Wrapping Paper
itemHeader	Item
quantityHeader	Quantity
descriptionHeader	Description
amountHeader	Amount
refundedHeader	Refunded
subtotalBeforeDiscountsField	Subtotal before discounts
discountsField	Discounts
subtotalField	Subtotal
shippingHandlingField	Shipping/Handling
taxRateField	Tax Rate
taxField	Tax
giftChargeField	Gift Charge
surchargeField	Surcharge
giftCertificateField	Gift Certificate
totalField	Total
yourActualMessage	Your actual financial statement may vary due to actual currency conversion.

ShippingEstimate

info

Transcluded from ShippingEstimate.

Weight

info

Transcluded from Weight.

Cart REST API

/rest/cart

Method	GET	Comments

Method	POST/PUT	Comments
Description	inserts or updates a cart.	technically, the PUT does an update, and the POST does an insert, but both methods are smart enough to insert if needed, else update
Cookies	none
Path Parameters	cartId	Example: /rest/cart/ASDBSD12415DFA12451 The server will not regard the path parameter. It is there only to allow frameworks like backbone.js to operate correctly. The only Cart ID the server regards is the one in the Cart itself (cart.cartId)
Query Parameters	none
Headers	none
Receives Json	Cart
Returns Json	Cart

function updateCart() {
  // it's okay to have an empty cartId initially, but the property merchantId *must* be present and explicit.
  var cart = {
    'merchantId': 'DEMO',
    'cartId': '',
    'email': 'demo@demo.com' // pick any random field.  email will suffice for this demonstration
  };

  jQuery.ajax({
    url: '/rest/cart',
    type: 'PUT', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(cart),
    dataType: 'json'
  }).done(function (updatedCart) {
        jQuery('#updateCartResults').html('<pre>' + JSON.stringify(updatedCart, null, '  ') + '</pre>');
      });
}

jQuery(document).ready(function () {
  jQuery('#updateCartButton').on('click', updateCart);
});

/rest/cart/estimateShipping

Method	POST	Comments
Description	returns shipping methods	This call should be executed asychronously. It takes a few seconds to query the various shippers and get their rates.
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	Cart
Returns Json	ShippingEstimate[ ]

function estimateShipping() {
  var cart = {
    'merchantId': 'DEMO',
    'cartId': '', // will be populated by call
    'items': [
      {'itemId': 'PDF', 'quantity': 1},
      {'itemId': 'Baseball', 'quantity': 2},
      {'itemId': 'BONE', 'quantity': 5}
    ]
  };

  jQuery.ajax({
    url: '/rest/cart',
    type: 'PUT', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(cart),
    dataType: 'json'
  }).done(function (updatedCart) {

        jQuery.ajax({
          url: '/rest/cart/estimateShipping',
          type: 'POST', // Notice
          headers : { "cache-control": "no-cache" },
          contentType: 'application/json; charset=UTF-8',
          data: JSON.stringify(updatedCart),
          dataType: 'json'
        }).done(function (availableShippingMethods) {

              var txt = JSON.stringify(availableShippingMethods, null, '  ');
              var pre = jQuery('<pre>');
              pre.text(txt);
              jQuery('#estimateShippingResults').html('').append(pre);

            });
      });
}

jQuery(document).ready(function () {
  jQuery('#estimateShippingButton').on('click', estimateShipping);
});

/rest/cart/checkout (this is NOT the last step)

Method	POST	Comments

Method	POST	Comments

Method	POST	Comments

Method	POST	Comments
Description	finalized the order with a time wait	This method is used for upsells. When the order is complete, call this method. After that, you may show the user additional upsells. These upsells can be added to the cart without issue. This method is used to protect an order in case the customer closes the browser during the navigation. When finalizeAfter
Cookies	none
Path Parameters	none
Query Parameters	minutes	an integer for how long to wait before finalizing the order. If absent, the default is 30 minutes.
Headers	none
Receives Json	Cart
Returns Json	nothing.	If successful, the call will return back status code 204 which signifies "no content", but "all is well"

// since this demonstration has both a set and a clear, I'll need some state.
// so I'm going to use a global variable to store a cart reference.  Don't hate me.
var finalizeCart = null;

function finalizeAfter() {

  if (!finalizeCart) {
    jQuery.ajax({
      url: '/rest/cart',
      headers: {'X-UC-Merchant-Id': 'DEMO',
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantID'
      dataType: 'json',
      async: false // for the demonstration, I'm keeping it simple with an synchronous call...
    }).done(function (cart) {
          finalizeCart = cart;
        });
  }

  jQuery.ajax({
    url: '/rest/cart/setFinalizeAfter?minutes=20', //minutes is optional.  default is 30
    type: 'POST', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(finalizeCart),
    dataType: 'json'
  }).done(function (data, textStatus, jqXHR) {

        var txt = jqXHR.status == 204
            ? "Server returned 204 'No Content', so the setFinalizeAfter was successful"
            : "Error. setFinalizeAfter failed with this: " + textStatus;
        var pre = jQuery('<pre>');
        pre.text(txt);
        jQuery('#finalizeResults').html('').append(pre);


      });
}


function clearFinalizeAfter() {
  if (!finalizeCart) {
    alert('Please click the finalizeAfter button before attempting to clear it.');
    return;
  }

  jQuery.ajax({
    url: '/rest/cart/clearFinalizeAfter',
    type: 'POST', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(finalizeCart),
    dataType: 'json'
  }).done(function (data, textStatus, jqXHR) {

        var txt = jqXHR.status == 204
            ? "Server returned 204 'No Content', so the clearFinalizeAfter was successful"
            : "Error. clearFinalizeAfter failed with this: " + textStatus;
        var pre = jQuery('<pre>');
        pre.text(txt);
        jQuery('#finalizeResults').html('').append(pre);

      });
}


jQuery(document).ready(function () {
  jQuery('#finalizeAfterButton').on('click', finalizeAfter);
  jQuery('#finalizeClearButton').on('click', clearFinalizeAfter);
});

/rest/cart/clearFinalizeAfter

Method	POST	Comments

Method	POST	Comments
Description	subscribes a customer to a mail list	It goes without saying, but I'll say it. Please test out your configuration and mail list to make sure everything's in order. Your customers are not the ones you should test things out with.
Cookies	none
Path Parameters	none
Query Parameters	lists autoResponderName	lists is an array of mailing lists. Example: ?lists=list1&lists=coupons&lists=survey The name of the auto responder should be one of the following: - icontact - madmimi - silverpop - mailchimp - lyris - lyrishq - campaignMonitor - getResponse
Headers	none
Receives Json	Cart
Returns Json	Cart

/rest/cart/login

Method	POST	Comments

Method	POST	Comments

Method	POST	Comments

Method	POST	Comments
Description	Returns the checkout terms	This is a separate call because many merchants have extremely long checkout terms and we don't want to pass them back and forth multiple times.
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	Cart	The cart must be passed in because the checkout terms may vary by cart items.
Returns Json	CheckoutTerms

function checkoutTerms() {

  var cart = {
    'merchantId': 'DEMO',
    'cartId': '', // will be populated by call
    'items': [
      {'itemId': 'PDF', 'quantity': 1},
      {'itemId': 'Baseball', 'quantity': 2},
      {'itemId': 'BONE', 'quantity': 5}
    ]
  };

  jQuery.ajax({
    url: '/rest/cart',
    type: 'POST', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(cart),
    dataType: 'json'
  }).done(function (updatedCart) {

        jQuery.ajax({
          url: '/rest/cart/checkoutTerms',
          type: 'POST', // Notice
          headers : { "cache-control": "no-cache" },
          contentType: 'application/json; charset=UTF-8',
          data: JSON.stringify(updatedCart),
          dataType: 'json'
        }).done(function (terms) {

              var txt = JSON.stringify(terms, null, '  ');
              var pre = jQuery('<pre>');
              pre.text(txt);
              jQuery('#checkoutTermsResults').html('').append(pre);

            });
      });
}

jQuery(document).ready(function () {
  jQuery('#checkoutTermsButton').on('click', checkoutTerms);
});

/rest/cart/relatedItems

Method	POST	Comments
Description	Returns items related to the cart items
Cookies	none
Path Parameters	none
Query Parameters	thumbnailSize	optional integer: one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. Thumbnails are always square.
Headers	none
Receives Json	Cart
Returns Json	Array of Items	Notice that this returns back Items, not CartItems. There is a difference. You should not add an Item to your cart. Create a new CartItem instead. The server will not like Item json appears where CartItem is expected.

/rest/cart/relatedItems/{itemId}

Method	POST	Comments
Description	Returns items related to a single item id	This differs from the method call directly above. The method above considers the entire shopping cart and returns a list related to the cart. The call above is useful on a checkout page. This method returns related items for a single items. Its useful is for a single item page where you wish to show related items for it. This information is not contained in the normal item information because it would triple/quadrulple the item size easily. So we keep this as a separate call to keep things fast.
Cookies	none
Path Parameters	none
Query Parameters	thumbnailSize	optional integer: one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. Thumbnails are always square.
Headers	none
Receives Json	Cart	Even though the cart items are not considered, the cart is still necessary as a parameter for the underlying query. A new cart is fine to pass in. However, most of the time, the customer will already have a cart in progress, so this shouldn't be a problem to pass in.
Returns Json	Array of Items	Notice that this returns back Items, not CartItems. There is a difference. You should not add an Item to your cart. Create a new CartItem instead. The server will not like Item json appears where CartItem is expected.

/rest/cart/taxCounties

Method	POST	Comments
Description	Returns a list of possible tax counties
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	Cart
Returns Json	Array of Strings	If your cart collects tax, this call is useful to determine if a taxable county is applicable. Some cities span counties, so this list could be used to have the customer select which county they live in to collect applicable taxes.

/rest/cart/giftSettings

Method	POST	Comments
Description	Returns gift settings	Since most merchants do not use gift settings, this is a separate call to keep the bulk of transactions fast.
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	Cart
Returns Json	GiftSettings

/rest/cart/validateGiftCertificate

Method	POST	Comments
Description	validates a gift certificate
Cookies	none
Path Parameters	none
Query Parameters	giftCertificate	The gift certificate code.
Headers	none
Receives Json	Cart
Returns Json	Array of Strings	Returns a list of any issues found. No news is good news.

/rest/cart/hostLink

Method	POST	Comments
Description	links multiple sites	This call is useful for sites with multiple urls. This call links them all together on the back end. This is an advanced call and will not be used by many.
Cookies	none
Path Parameters	none
Query Parameters	secureHostName	Notice! This is a POST that also has a query parameter. The secureHostName should point to the checkout site. For example, if your catalog/product site is hosted on your own server named www.rainglobes.com, and your UltraCart checkout is using the url secure.rainglobes.com, then you should pass in secureHostName=secure.rainglobes.com as the parameter here.
Headers	none
Receives Json	Cart
Returns Json	String	Returns a list of urls that you should call (embed as img, use ajax, etc). Each url called will set cookies on that url so that a cart session can jump domains.

/rest/cart/cityState

Method	POST	Comments
Description	validates the city, state, and zip	Compares to the zip to the city and state. If they don't match, it returns back the correct city and state. This method is useful for prepopulating city and state when the user enters a zip code.
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	Cart
Returns Json	CityStateZip

function cityState() {

  var cart = {
    'merchantId': 'DEMO',
    'cartId': '', // will be populated by call
    'shipToPostalCode': '44233'
  };

  jQuery.ajax({
    url: '/rest/cart',
    type: 'POST', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: JSON.stringify(cart),
    dataType: 'json'
  }).done(function (updatedCart) {

        jQuery.ajax({
          url: '/rest/cart/cityState',
          type: 'POST', // Notice
          headers : { "cache-control": "no-cache" },
          contentType: 'application/json; charset=UTF-8',
          data: JSON.stringify(updatedCart),
          dataType: 'json'
        }).done(function (cityStateZip) {

              var txt = JSON.stringify(cityStateZip, null, '  ');
              var pre = jQuery('<pre>');
              pre.text(txt);
              jQuery('#cityStateResults').html('').append(pre);

            });
      });
}

jQuery(document).ready(function () {
  jQuery('#cityStateButton').on('click', cityState);
});

/rest/cart/share/email

Method	GET	Comments
Description	emails the cart items	Sends an email of the cart items to a desired receipient. The email is formatted via the Email Notifications (Home → Configuration →Email Notifications). For security, only the cart items are available to the email template. The cart must be a valid shopping cart with at least one item in it.
Cookies	UltraCartMerchantID - Merchant ID UltraCartShoppingCartID - Cart ID	Optional cookies. cart id and merchant id must be provided by either cookie, header, or query parameter.
Path Parameters	none
Query Parameters	_cid _mid fromEmail fromName toEmail	Optional cart id (The cart id must be provided by either cookie, header, or query parameter. Optional merchant id (merchant id must be provided by either cookie, header, or query parameter. Email address who is sharing cart. This may come from a customer profile or submitted by the end customer. The name of the person sending the email. The target. The person who will receive the email. Note: The fromEmail, fromName, and toEmail are heavily filtered for html injection attacks.
Headers	X-UC-Merchant-Id - Merchant ID X-UC-Shopping-Cart-Id - Cart ID
Receives Json	none
Returns Json	204 No Content on Success. 400 Bad Request if there's an issue with incoming parameters. 500 Server Error for unforseen errors

function shareCart() {


  jQuery.ajax({
    url: '/rest/cart/share/email',
    type: 'GET', // Notice
    headers : { "cache-control": "no-cache" },
    contentType: 'application/json; charset=UTF-8',
    data: {'_cid': my_cart_id, '_mid': 'DEMO', 'fromEmail': 'joe@aol.com', 'fromName': 'Joe Smith', 'toEmail': 'larray@aol.com' },
    dataType: 'json'
  }).done(function (data, textStatus, jqXHR) {
     // check for 204, 400, or 500.
      });
}

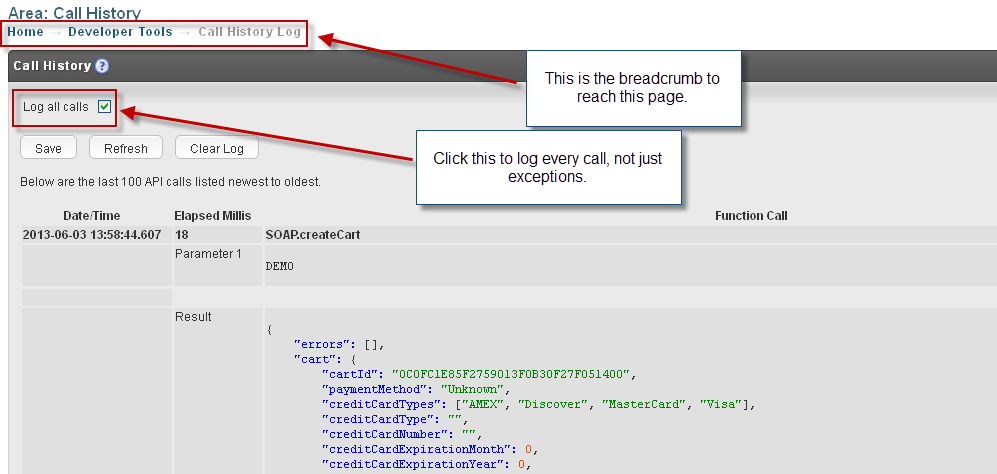

Server Side Logging

Detailed logs for errors may be captured on the UltraCart system. Optionally, the last 100 calls made may be captured as well.

To use:

• Ensure the login used to access secure.ultracart.com has "API Access". This may be granted by the account owner here: Configuration → Manage Users → Edit User.

• Once permission is granted, navigate to Developer Tools → Call History Log. It's a link in the Javascript Checkout API section.
