This is Version 1 of the UltraCart REST API. It is now legacy. It will remain forever, but no new development will be done.

Please see Version 2 for new development.

Version 2 Main Documentation

Version 2 Supplemental Documentaion

Introduction (Things you'll wish you read first)

The UltraCart REST API aims to be a lightweight protocol for tying a checkout page(s) to the UltraCart back end.

tip

// this code was removed due to incompatibility with the current UltraCart engine.

info

Every call needs a merchant id (our merchant id is DEMO). We need to know who you are. There are four ways to provide the merchant id to the server:

Use your StoreFront url instead of secure.ultracart.com within your proxy script.
Query Parameter: _mid=DEMO
HTTP Header: 'X-UC-Merchant-Id': 'DEMO'
Cookie named UltraCartMerchantId

The very best way is to use your StoreFront url. Every merchant has free StoreFronts with their account. Make sure you have one configured with a valid theme, and then change your proxy script to point to your StoreFront url. For example, change the destination from secure.ultracart.com to .ultracartstore.com. Any requests directed to a StoreFront will automatically resolve the merchant id automatically.

Most of the examples below use the http header since it's easy to use with jQuery. If you wished to do it for all your ajax calls, you could execute this javascript:

jQuery.ajaxSetup({ cache: false, headers: {'X-UC-Merchant-Id': 'DEMO', "cache-control": "no-cache"});

However, that makes each call less atomic (and jQuery doesn't recommend it). Still, it's an option and make work well with your site.

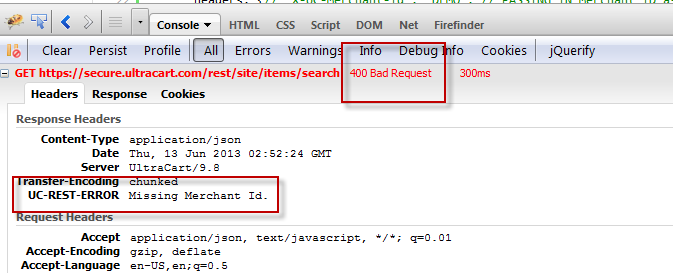

If you receive an error "Missing Merchant ID", you've forgotten to do one of the above.

Now, in case you're wondering why the three methods use different names...

We made the query parameter as short as possible to keep the urls as short as possible. We used an underscore to denote "meta data" to the call.
We follow common practices for naming custom http headers. While the X- prefix is officially out of vogue, we still think it looks cool.
The cookie 'UltraCartMerchantId' is used in hundred of existing UltraCart checkout pages. So it made sense to stick with that cookie name.

warning

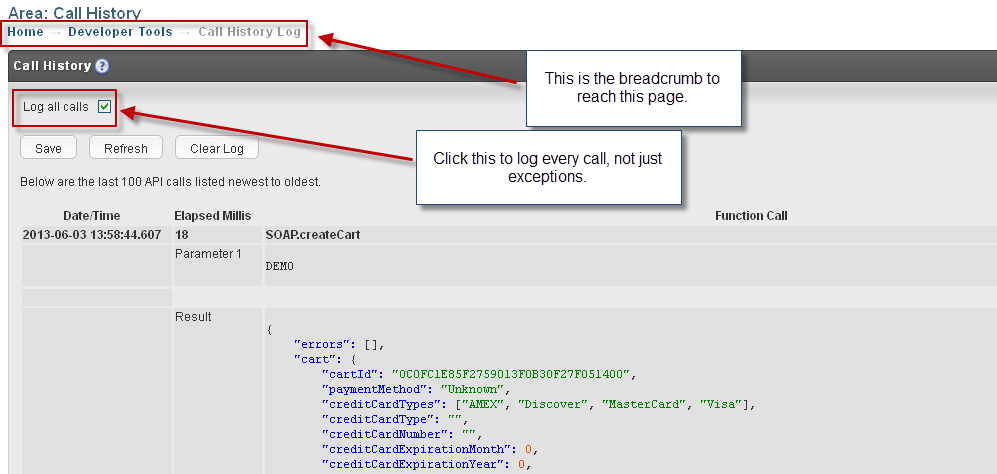

When something doesn't work or you get an error, open your browser console and view the headers. Look for the error.

then fix it.

Can't? Then get on github.com. Ask for help.

Object Model

Any json objects referenced below may be found on the Checkout REST API screen. These two APIs have lots of overlap.

Site REST API

The site rest api deals with calls that are more merchant-centric rather than cart-centric. They usually return information that is the same regardless of the cart, such as a merchant's return policy or allowed countries.

When a site rest call does take a cart, it's to augment the call with customer specific information.

For example, if a merchant has pricing tiers configured, then the prices for items will be different if a customer is logged in or not. Those calls that take cart objects will consider the logged in user when returning back pricing, etc.

You'll see this behavior on some of the item calls.

tip

When a call takes an optional cart object, the method type will usually change from a 'get' to a 'post', and the post payload will be the cart's json. Don't forget to set the right type if you're passing in the cart.

/rest/site/stateProvinces

Method	GET	Comments
Description	returns back all states for the country provided	This is a convenience function to retrieve all configured states for a country. It just avoids having to hard code a bunch of states in an application. If you're just shipping to the US, this call doesn't make sense. However, if you ship internationally, this call can be very handy to populate a state/province field with the correct values dynamically whenever the country field changes from (example) United States to Canada.
Cookies	none
Path Parameters	none
Query Parameters	country includeCodes (boolean optional)	'United States', 'Canada', etc. true
Headers	none
Receives Json	none
Returns Json	String Array	Example: [ "Alabama", "Alaska", "American Samoa", "Arizona", "Arkansas", "Armed Forces Africa", "Armed Forces Americas", "Armed Forces Canada", "Armed Forces Europe", "Armed Forces Middle East", "Armed Forces Pacific", "California", "Colorado", "Connecticut", "Delaware", "District of Columbia", "Federated States of Micronesia", "Florida", "Georgia", "Guam", "Hawaii", "Idaho", "Illinois", "Indiana", "Iowa", "Kansas", "Kentucky", "Louisiana", "Maine", "Marshall Islands", "Maryland", "Massachusetts", "Michigan", "Minnesota", "Mississippi", "Missouri", "Montana", "Nebraska", "Nevada", "New Hampshire", "New Jersey", "New Mexico", "New York", "North Carolina", "North Dakota", "Northern Mariana Islands", "Ohio", "Oklahoma", "Oregon", "Palau", "Pennsylvania", "Puerto Rico", "Rhode Island", "South Carolina", "South Dakota", "Tennessee", "Texas", "Utah", "Vermont", "Virgin Islands", "Virginia", "Washington", "West Virginia", "Wisconsin", "Wyoming" ] Example for include codes: [{"province":"Alabama","code":"AL"},{"province":"Alaska","code":"AK"},{"province":"American Samoa","code":"AS"}, {"province":"Arizona","code":"AZ"},{"province":"Arkansas","code":"AR"},{"province":"Armed Forces Africa","code":"AE"}, {"province":"Armed Forces Americas","code":"AA"},{"province":"Armed Forces Canada","code":"AE"}, {"province":"Armed Forces Europe","code":"AE"},{"province":"Armed Forces Middle East","code":"AE"}, {"province":"Armed Forces Pacific","code":"AP"},{"province":"California","code":"CA"},{"province":"Colorado","code":"CO"}, {"province":"Connecticut","code":"CT"},{"province":"Delaware","code":"DE"},{"province":"District of Columbia","code":"DC"}, {"province":"Federated States of Micronesia","code":"FM"},{"province":"Florida","code":"FL"}, {"province":"Georgia","code":"GA"},{"province":"Guam","code":"GU"},{"province":"Hawaii","code":"HI"}, {"province":"Idaho","code":"ID"},{"province":"Illinois","code":"IL"},{"province":"Indiana","code":"IN"}, {"province":"Iowa","code":"IA"},{"province":"Kansas","code":"KS"},{"province":"Kentucky","code":"KY"}, {"province":"Louisiana","code":"LA"},{"province":"Maine","code":"ME"},{"province":"Marshall Islands","code":"MH"}, {"province":"Maryland","code":"MD"},{"province":"Massachusetts","code":"MA"},{"province":"Michigan","code":"MI"}, {"province":"Minnesota","code":"MN"},{"province":"Mississippi","code":"MS"},{"province":"Missouri","code":"MO"}, {"province":"Montana","code":"MT"},{"province":"Nebraska","code":"NE"},{"province":"Nevada","code":"NV"}, {"province":"New Hampshire","code":"NH"},{"province":"New Jersey","code":"NJ"},{"province":"New Mexico","code":"NM"}, {"province":"New York","code":"NY"},{"province":"North Carolina","code":"NC"},{"province":"North Dakota","code":"ND"}, {"province":"Northern Mariana Islands","code":"MP"},{"province":"Ohio","code":"OH"},{"province":"Oklahoma","code":"OK"}, {"province":"Oregon","code":"OR"},{"province":"Palau","code":"PW"},{"province":"Pennsylvania","code":"PA"}, {"province":"Puerto Rico","code":"PR"},{"province":"Rhode Island","code":"RI"},{"province":"South Carolina","code":"SC"}, {"province":"South Dakota","code":"SD"},{"province":"Tennessee","code":"TN"},{"province":"Texas","code":"TX"}, {"province":"Utah","code":"UT"},{"province":"Vermont","code":"VT"},{"province":"Virgin Islands","code":"VI"}, {"province":"Virginia","code":"VA"},{"province":"Washington","code":"WA"},{"province":"West Virginia","code":"WV"}, {"province":"Wisconsin","code":"WI"},{"province":"Wyoming","code":"WY"}]

  function stateProvinces() {
    var country = jQuery('#stateProvincesCountry').val() || 'United States';
    jQuery.ajax({
      url: '/rest/site/stateProvinces',
      data: {country: country},
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'DEMO',
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (states) {
          jQuery('#stateProvincesResult').html('<pre>' + JSON.stringify(states, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#stateProvincesButton').on('click', stateProvinces);
  });

<div class='demo'><a class='demo-link' name="demo14"></a>
  <h4 class='title'>Get State Provinces</h4>
  <div class='details'>
    Country: <input type="text" id="stateProvincesCountry" value="United States" />
    <input type="button" class='demo-button' value="Get States/Provinces" id="stateProvincesButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display14"></script>
    Result:
    <div class="results" id="stateProvincesResult"></div>
  </div>
</div>

/rest/site/stateProvinceCodes

Method	GET	Comments
Description	returns back all state codes for the country provided	This is just like /rest/site/stateProvinces, but it returns back codes instead of long names.
Cookies	none
Path Parameters	none
Query Parameters	country	'United States', 'Canada', etc.
Headers	none
Receives Json	none
Returns Json	String Array	Example: [ "AL", "AK", "AS", "AZ", "AR", "CA", "CO", "CT", "DE", "DC", "FM", "FL", "GA", "GU", "HI", "ID", "IL", "IN", "IA", "KS", "KY", "LA", "ME", "MH", "MD", "MA", "MI", "MN", "MS", "MO", "MT", "NE", "NV", "NH", "NJ", "NM", "NY", "NC", "ND", "MP", "OH", "OK", "OR", "PW", "PA", "PR", "RI", "SC", "SD", "TN", "TX", "UT", "VT", "VI", "VA", "WA", "WV", "WI", "WY", "AE", "AA", "AE", "AE", "AE", "AP" ]

    function stateProvinceCodes() {
    var country = jQuery('#stateProvinceCodesCountry').val() || 'United States';
    jQuery.ajax({
      url: '/rest/site/stateProvinceCodes',
      data: {country: country},
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'DEMO',
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (statesCodes) {
          jQuery('#stateProvinceCodesResult').html('<pre>' + JSON.stringify(statesCodes, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#stateProvinceCodesButton').on('click', stateProvinceCodes);
  });

<div class='demo'><a class='demo-link' name="demo15"></a>
  <h4 class='title'>Get State Province Codes</h4>
  <div class='details'>
    Country: <input type="text" id="stateProvinceCodesCountry" value="United States" />
    <input type="button" class='demo-button' value="Get States/Provinces" id="stateProvinceCodesButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display15"></script>
    Result:
    <div class="results" id="stateProvinceCodesResult"></div>
  </div>
</div>

/rest/site/storeFront/searchAutoSuggest

Method	GET	Comments
Description	returns back suggestions and result items based upon current search	This is just like /rest/site/stateProvinces, but it returns back codes instead of long names.
Cookies	none
Path Parameters	none
Query Parameters	search thumbnailSize thumbnailHeight thumbnailWidth	Users search string. Don't submit until 3 characters long. Desired thumbnail size on item results for square thumbnails thumbnailHeight/thumbnailWidth take precedence over thumbnailSize. Valid values are: Widths: 80, 100, 200, 220, 250, 500 Heights: 80, 100, 200, 220, 250 293, 500
Headers	none
Receives Json	none
Returns Json	A complex object containing suggestions and results.	Example: { "sugestions": [{suggestion object}, {suggestion object}, ...], "results": [{item object}, {item object}, ...] }

/rest/site/unifiedAffiliateCookieScript

Method	GET	Comments
Description	returns back a url that can be used to construct a script element. When run, that script will set cookies to track affiliates across domains.	There's lot of ways to run the script. jQuery makes it easy. `jQuery.getScript(url);`
Cookies	none
Path Parameters	none
Query Parameters	secureHostName - the domain you wish to track affiliates on _mid - your Merchant ID (could also use header or cookie - see example)	www.mystorenamehere.com DEMO
Headers	none
Receives Json	none
Returns Json	This returns a text string, not Json!	Example: https://secure.ultracart.com/checkout/unifiedAffiliateCookie.jsp?merchantId=DEMO&secureHostName=www.mystorenamehere.com

 function unifiedAffiliateScript() {
    var merchantId = 'DEMO';
    var secureHostName = "www.mystorenamehere.com";
    jQuery.ajax({
      url: '/rest/site/unifiedAffiliateCookieScript',
      data:{secureHostName: secureHostName},
      type: 'get',
      headers: {'X-UC-Merchant-Id': merchantId, // this is one way to pass MID
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'text'  // NOTE: This returns back plain text!
    }).done(function (script) {
          jQuery('#unifiedAffiliateCookieScriptResult').html('<pre>' + script + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#unifiedAffiliateCookieScriptButton').on('click', unifiedAffiliateScript);
  });

<div class='demo'><a class='demo-link' name="demo16"></a>
  <h4 class='title'>Unified Affiliate Cookie Script</h4>
  <div class='details'>
    <input type="button" class='demo-button' value="Get Script" id="unifiedAffiliateCookieScriptButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display16"></script>
    Result:
    <div class="results" id="unifiedAffiliateCookieScriptResult"></div>
  </div>
</div>

/rest/site/advertisingSources

Method	GET	Comments
Description	returns back a string array of all advertising sources for a merchant and (optionally) a specific theme code.
Cookies	none
Path Parameters	none
Query Parameters	screenBrandingThemeCode	Theme code is optional. If not provided, the default is used (DFLT). To manage your theme codes, login to the back end (secure.ultracart.com) and navigate to Home → Configuration → Look and Feel Section → Screen Branding Themes
Headers	none
Receives Json	none
Returns Json	A string array of advertising sources	Example: [ "ABC Family", "Allure Magazine", "BBC America", "Biography Channel", "Cosmopolitan Magazine", "CW+", "Discovery Health", "Discovery Home", "DIY Channel", "E! Channel", "Elle Magazine", "Enquirer", "Essence Magazine", "First For Women Magazine", "Food Channel", "Friend/Family", "GAC", "Glamour Magazine", "Google", "HGTV", "In Style Magazine", "Internet Search Engines", "ION", "Ladies Home Journal", "Lifetime Movies Network", "Lucky Magazine", "Mailer", "Marie Claire Magazine", "Money Mailer Coupon", "MTV", "O, The Oprah Magazine", "OK magazine", "Oxygen Channel", "Quick and Simple Magazine", "Radio", "Redbook Magazine", "Self Magazine", "Shape Magazine", "Soapnet Channel", "Star Magazine", "Style Channel", "Tennis Channel", "Us Weekly Magazine", "VH1", "Vogue Magazine", "WeTV", "Woman's World Magazine", "WWD Magazine", "Yahoo!" ]

   function advertisingSources() {
    var themeCode = "DFLT";
    jQuery.ajax({
      url: '/rest/site/advertisingSources',
      data:{screenBrandingThemeCode: themeCode},
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'SANTI', // this is one way to pass MID
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (sources) {
          jQuery('#advertisingResult').html('<pre>' + JSON.stringify(sources, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#advertisingButton').on('click', advertisingSources);
  });

<div class='demo'><a class='demo-link' name="demo17"></a>
  <h4 class='title'>Advertising Sources</h4>
  <div class='details'>
    <input type="button" class='demo-button' value="Get Advertising Sources" id="advertisingButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display17"></script>
    Result:
    <div class="results" id="advertisingResult"></div>
  </div>
</div>

/rest/site/returnPolicy

Method	GET	Comments
Description	returns back a plain text string of the merchant's return policy	returns back the policy for the default theme (DFLT) unless the theme is specified Fetches a merchant's return policy. Some of you guys have massive return policies, especially anyone selling an digestible product. We don't want to carry that back and forth with every call, so we don't attach it to the cart object. It's separate. You'll probably fetch it once and store it somewhere. localStorage is a great idea...
Cookies	none
Path Parameters	none
Query Parameters	screenBrandingThemeCode	Theme code is optional. If not provided, the default is used (DFLT). To manage your theme codes, login to the back end (secure.ultracart.com) and navigate to Home → Configuration → Look and Feel Section → Screen Branding Themes
Headers	none
Receives Json	none
Returns Json	This returns a text string, not Json!	Example: I want you to love your jewelry item. If you are not completely satisfied with your purchase you may return the item within 14 days of receiving it for exchange or credit ONLY (excludes custom orders). Item must be in its' original packaging and in perfect, unused condition. Sorry, shipping costs will not be refunded.

function returnPolicy() {
    var themeCode = "DFLT";
    jQuery.ajax({
      url: '/rest/site/returnPolicy',
      data:{screenBrandingThemeCode: themeCode},
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'DEMO', // this is one way to pass MID
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'text' // NOTICE the data type.  This returns plain text.
    }).done(function (returnPolicy) {
          jQuery('#returnPolicyResult').html('<pre>' + returnPolicy + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#returnPolicyButton').on('click', returnPolicy);
  });

<div class='demo'><a class='demo-link' name="demo18"></a>
  <h4 class='title'>Return Policy</h4>
  <div class='details'>
 <input type="button" class='demo-button' value="Get Return Policy" id="returnPolicyButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display18"></script>
    Result:
    <div class="results" id="returnPolicyResult"></div>
  </div>
</div>

/rest/site/allowedCountries

Method	GET	Comments
Description	returns back a string array of all countries a merchant ships to
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	none
Returns Json	A string array of countries	Example: [ "Afghanistan", "Albania", "Algeria", "American Samoa", "Andorra", "Angola", "Anguilla", "Antigua", "Argentina", "Armenia", "Aruba", "Australia", "Austria", "Azerbaijan", "Azores", "Bahamas", "Bahrain", "Bangladesh", "Barbados", "Barbuda", "Belarus", "Belgium", "Belize", "Benin", "Bermuda", "Bhutan", "Bolivia", "Bonaire", "Bosnia and Herzegovina", "Botswana", "Brazil", "British Virgin Islands", "Brunei Darussalam", "Bulgaria", "Burkina Faso", "Burundi", "Cambodia", "Cameroon", "Canada", "Canary Islands", "Cape Verde Islands", "Cayman Islands", "Central African Republic", "Chad", "Channel Islands", "Chile", "China", "Christmas Island", "Cocos Islands", "Colombia", "Comoros", "Congo", "Cook Islands", "Costa Rica", "Cote d'Ivoire", "Croatia", "Cuba", "Curacao", "Cyprus", "Czech Republic", "Denmark", "Djibouti", "Dominica", "Dominican Republic", "Ecuador", "Egypt"] ... and many more ...

  function allowedCountries() {
    jQuery.ajax({
      url: '/rest/site/allowedCountries',
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'DEMO', // this is one way to pass MID
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (countries) {
          jQuery('#allowedCountriesResult').html('<pre>' + JSON.stringify(countries, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#allowedCountriesButton').on('click', allowedCountries);
  });

<div class='demo'><a class='demo-link' name="demo19"></a>
  <h4 class='title'>Allowed Countries</h4>
  <div class='details'>
    <input type="button" class='demo-button' value="Get Allowed Countries" id="allowedCountriesButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display19"></script>
    Result:
    <div class="results" id="allowedCountriesResult"></div>
  </div>
</div>

rest/site/customerIpAddress

Method	GET	Comments
Description	returns back the customer's ip address
Cookies	none
Path Parameters	none
Query Parameters	none
Headers	none
Receives Json	none
Returns Json	Plain Text! IP Address	Example: 127.0.0.1

    function customerIpAddress() {
    jQuery.ajax({
      url: '/rest/site/customerIpAddress',
      type: 'get',
      headers: {'X-UC-Merchant-Id': 'DEMO', // this is one way to pass MID
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'text' // Note! Plain text string
    }).done(function (ipAddress) {
          jQuery('#customerIpAddressResult').html('<pre>' + ipAddress + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#customerIpAddressButton').on('click', customerIpAddress);
  });

<div class='demo'><a class='demo-link' name="demo20"></a>
  <h4 class='title'>Customer IP Address</h4>
  <div class='details'>
    <input type="button" class='demo-button' value="Get Allowed Countries" id="customerIpAddressButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display20"></script>
    Result:
    <div class="results" id="customerIpAddressResult"></div>
  </div>
</div>

/rest/site/items/search

Method	GET	Comments
Description	search for items, and returns back a paginated result search.
Cookies	none
Path Parameters	none
Query Parameters	`search` `itemsPerPage` `currentPage` `secureServerName` thumbnailSize thumbnailWidth thumbnailHeight	string, the search term to look for. integer integer this name is used in the url construction (see example results) so that the view urls are already pointing at your server. optional integer: for square thumbnails, one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. thumbnailHeight/thumbnailWidth take precedence over thumbnailSize. Valid values are: Widths: 80, 100, 200, 220, 250, 500 Heights: 80, 100, 200, 220, 250 293, 500
Headers	none
Receives Json	none
Returns Json	A complex object containing pagination information and an array of items	Example: { "totalResults": 1, "currentPage": 1, "totalPages": 1, "items": [ { "extendedDescription": "", "description": "BONE", "thumbnailUrl": "1369252924157/DEMO/8/9/80-80-89BDA673BC716255B7EC50069B4A398F.jpg", "cost": 20, "viewUrl": "http://secure.ultracart.com/catalog/DEMO/products/facebook/fb-single/Bone.html", "addToCartUrl": "/cgi-bin/UCEditor?merchantId=DEMO&ADD=Bone" } ] } :::info to use the thumbnail, append it to `secure.ultracart.com/thumbs/` or the equivalent server name if your SSL is hosted with UltraCart. The addToCartUrl should be appended to `[https://secure.ultracart.com](https://secure.ultracart.com)` (or your SSL name if hosted with UltraCart). :::

    function itemSearch() {
    var merchantId = jQuery('#itemSearchMerchantId').val() || 'DEMO';
    var search = jQuery('#itemSearchField').val() || '';
    var itemsPerPage = 5;
    var currentPage = 1;
    var secureServerName = "secure.ultracart.com";
    var data ={
      _mid:merchantId,
      search:search,
      itemsPerPage:itemsPerPage,
      currentPage:currentPage,
      secureServerName: secureServerName
    };

    jQuery.ajax({
      url: '/rest/site/items/search',
      type: 'get',
      data: data,
      headers: {// 'X-UC-Merchant-Id': 'DEMO', // PASSING IN Merchant ID as parameter so you can try your own!
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (results) {
          jQuery('#itemSearchResult').html('<pre>' + JSON.stringify(results, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#itemSearchButton').on('click', itemSearch);
  });

<div class='demo'><a class='demo-link' name="demo21"></a>
  <h4 class='title'>Item Search</h4>
  <div class='details'>

    Merchant ID: <input type="text" id="itemSearchMerchantId" value='DEMO' /><br />
    Search Term: <input type="text" id="itemSearchField" value='BONE' /><br />
    <input type="button" class='demo-button' value="Search for Items" id="itemSearchButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display21"></script>
    Result:
    <div class="results" id="itemSearchResult"></div>
  </div>
</div>

/rest/site/items

Method	GET	Comments
Description	retrieves a list of items	if both ids and url are provided, url is used.
Cookies	none
Path Parameters	none
Query Parameters	`id (array)` url `thumbnailSize` `thumbnailWidth` thumbnailHeight `cartId`	&id=item1&id=item2&id=item3 :::note If you are going to request more than one item id at a time via jQuery, make sure that you set traditional = true in your ajaxSettings. ::: the full url to a catalog group. this must be a valid catalog group. Example: https://secure.ultracart.com/catalog/DEMO/rest_demo/ (the url above will show an ugly page. It was created for the item data, not to serve as a fully functional page. optional integer: convenience parameters for square thumbnails using one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. thumbnailHeight/thumbnailWidth take precedence over thumbnailSize. Valid values are: Widths: 80, 100, 200, 220, 250, 500 Heights: 80, 100, 200, 220, 250 293, 500 If a cart id is passed in as a query, the associated cart is loaded and referenced. If the cart has a logged in customer (valid customer profile), then any items returned will have their pricing applied.
Headers	none
Receives Json	none
Returns Json	An array of Item objects (see Item definition above)	Example: [ { "cases": [], "minimumQuantity": 1, "maximumQuantity": null, "manufacturerSuggestedRetailPrice": null, "viewUrl": "http://www.testajax.com/catalog/DEMO/products/facebook/fb-single/ATARI2600.html", "options": [], "allowBackorder": false, "preorder": false, "inventoryTracked": false, "availableQuantity": 0, "inStock": true, "itemOid": 3707319, "itemId": "ATARI2600", "description": "Atari 2600", "extendedDescription": "", "cost": 999.99, "weight": null, "length": { "uom": "CM", "value": 0 }, "width": { "uom": "CM", "value": 0 }, "height": { "uom": "CM", "value": 0 }, "attributes": [], "multimedias": [ { "thumbnails": [ { "height": 80, "width": 80, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1347411615246/DEMO/4/6/80-80-466058B5603717FE5D5B2F1302FC06F0.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1347411615246/DEMO/4/6/80-80-466058B5603717FE5D5B2F1302FC06F0.jpg" }, { "height": 100, "width": 100, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1363399269313/DEMO/4/6/100-100-466058B5603717FE5D5B2F1302FC06F0.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1363399269313/DEMO/4/6/100-100-466058B5603717FE5D5B2F1302FC06F0.jpg" }, { "height": 200, "width": 200, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1363399250806/DEMO/4/6/200-200-466058B5603717FE5D5B2F1302FC06F0.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1363399250806/DEMO/4/6/200-200-466058B5603717FE5D5B2F1302FC06F0.jpg" } ], "type": "Image", "default": true, "imageWidth": 600, "imageHeight": 335, "viewUrl": "http://s3.amazonaws.com/ultracart/im/3F44E1FC096C0E0131DF4BBF5B051400?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371107686&Signature=EM5lMfjnmWk4ak2z6DVjEJ2uueg%3D", "description": "", "code": null, "excludeFromGallery": false } ], "defaultImageUrl": "http://s3.amazonaws.com/ultracart/im/3F44E1FC096C0E0131DF4BBF5B051400?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371107686&Signature=EM5lMfjnmWk4ak2z6DVjEJ2uueg%3D", "defaultThumbnailUrl": "http://ultracartthumbs.s3.amazonaws.com/1347411615246/DEMO/4/6/80-80-466058B5603717FE5D5B2F1302FC06F0.jpg", "variations": [] }, ... additional items here ... ]

function items() {
    var merchantId = jQuery('#itemsMerchantId').val() || 'DEMO';
    var items = jQuery('#itemsField').val() || '';
    items = items.split(','); // change the string into an array.
    var url = jQuery('#itemsUrlField').val() || '';
    var data = {
      _mid: merchantId,
      id: items,
      url: url
    };

    jQuery.ajax({
      url: '/rest/site/items',
      type: 'get',
      data: data,
      headers: {// 'X-UC-Merchant-Id': 'DEMO', // PASSING IN Merchant ID as parameter so you can try your own!
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (items) {
          jQuery('#itemsResult').html('<pre>' + JSON.stringify(items, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#itemsButton').on('click', items);
  });

<div class='demo'><a class='demo-link' name="demo22"></a>
  <h4 class='title'>Items</h4>
  <div class='details'>
    <em>Note: The server expects a parameter array of items, not a csv list. The javascript routine splits the string by
      commas and creates an array.</em><br />
    <table>
      <tr>
        <td>Merchant ID:</td>
        <td><input type="text" id="itemsMerchantId" value='DEMO' /></td>
      </tr>
      <tr>
        <td>Search Term:</td>
        <td><input type="text" id="itemsField" value='BONE,PDF,Baseball,TSHIRT' size='100' /></td>
      </tr>
      <tr>
        <td>Catalog Group URL:</td>
        <td><input type="text" id="itemsUrlField" size='100'
                   value='https://secure.ultracart.com/catalog/DEMO/rest_demo/' /></td>
      </tr>
      <tr><td colspan='2'>Hey.  You can't just put any url in the field above. It must be a valid catalog group.</td></tr>
    </table>

    <input type="button" class='demo-button' value="Fetch Items" id="itemsButton" />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display22"></script>
    Result:
    <div class="results" id="itemsResult"></div>
  </div>
</div>

/rest/site/items/{item id}

Method	GET	Comments
Description	retrieves a single item
Cookies	none
Path Parameters	item id	this should be a valid merchant item id. For example: /rest/site/items/TSHIRT
Query Parameters	thumbnailSize thumbnailWidth thumbnailHeight cartId	optional integer: one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. Use this for square thumbnails, otherwise use both thumbnailWidth and thumbnailHeight thumbnailHeight/thumbnailWidth take precedence over thumbnailSize. Valid values are: Widths: 80, 100, 200, 220, 250, 500 Heights: 80, 100, 200, 220, 250 293, 500 `If a cart id is passed in as a query, the associated cart is loaded and referenced. If the cart has a logged in customer (valid customer profile), then any items returned will have their pricing applied.`
Headers	none
Receives Json	none
Returns Json	An Item object (see Item definition above)	Example: { "cases": [], "minimumQuantity": 1, "maximumQuantity": null, "manufacturerSuggestedRetailPrice": null, "viewUrl": "http://www.testajax.com/catalog/DEMO/products/facebook/fb-single/PDF.html", "options": [], "allowBackorder": false, "preorder": false, "inventoryTracked": false, "availableQuantity": -33, "inStock": true, "itemOid": 128754, "itemId": "PDF", "description": "PDF Sampler", "extendedDescription": "", "cost": 1, "weight": null, "length": { "uom": "IN", "value": 0 }, "width": { "uom": "IN", "value": 0 }, "height": { "uom": "IN", "value": 0 }, "attributes": [], "multimedias": [ { "thumbnails": [ { "height": 200, "width": 200, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1363189011276/DEMO/F/D/200-200-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1363189011276/DEMO/F/D/200-200-FDDC193869B9EB22A7ADFA776F613062.jpg" }, { "height": 100, "width": 100, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1368717402788/DEMO/F/D/100-100-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1368717402788/DEMO/F/D/100-100-FDDC193869B9EB22A7ADFA776F613062.jpg" }, { "height": 80, "width": 80, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg" } ], "type": "Image", "default": true, "imageWidth": 400, "imageHeight": 400, "viewUrl": "http://s3.amazonaws.com/ultracart/im/317BBF705AEB5C0130BD546683051600?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371108852&Signature=RKlBcOafFfPuTGKovA9g%2FRSlAwo%3D", "description": "pdf icon", "code": null, "excludeFromGallery": false } ], "defaultImageUrl": "http://s3.amazonaws.com/ultracart/im/317BBF705AEB5C0130BD546683051600?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371108852&Signature=RKlBcOafFfPuTGKovA9g%2FRSlAwo%3D", "defaultThumbnailUrl": "http://ultracartthumbs.s3.amazonaws.com/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg", "variations": [] }

function singleItem() {
    var item = jQuery('#itemField').val() || '';
    jQuery.ajax({
      url: '/rest/site/items/' + item,
      type: 'get',
      headers: { 'X-UC-Merchant-Id': 'DEMO',
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (item) {
          jQuery('#itemResult').html('<pre>' + JSON.stringify(item, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#itemButton').on('click', singleItem);
  });

<div class='demo'><a class='demo-link' name="demo23"></a>
  <h4 class='title'>Single Item</h4>
  <div class='details'>
    Item Id: <input type="text" id="itemField" value='TSHIRT' size='20' /><br />
    <input type="button" class='demo-button' value="Fetch Item" id="itemButton" /><br />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display23"></script>
    Result:
    <div class="results" id="itemResult"></div>
  </div>
</div>

/rest/site/items/{item id}/relatedItems

Method	GET	Comments
Description	retrieves an array of related items for a given item
Cookies	none
Path Parameters	`item id`	`this should be a valid merchant item id. For example: /rest/site/items/TSHIRT/relatedItems`
Query Parameters	`thumbnailSize` `thumbnailWidth` thumbnailHeight `_mid` `cartId`	`_optional_ integer: one of these values: 80, 100, 200, 220, 250, 500. This is an optional parameter. The default is 80px. Use just thumbnailSize for square thumbs.` thumbnailHeight/thumbnailWidth take precedence over thumbnailSize. Valid values are: Widths: 80, 100, 200, 220, 250, 500 Heights: 80, 100, 200, 220, 250 293, 500 `if the merchant id isn't included via a cookie or header, it will need to be provided as a query parameter: _mid=DEMO` `If a cart id is passed in as a query, the associated cart is loaded and referenced. If the cart has a logged in customer (valid customer profile), then any items returned will have their pricing applied.`
Headers	none
Receives Json	`none`
Returns Json	An Item object (each related item will be one of these) (see Item definition above)	Example: { "cases": [], "minimumQuantity": 1, "maximumQuantity": null, "manufacturerSuggestedRetailPrice": null, "viewUrl": "http://www.testajax.com/catalog/DEMO/products/facebook/fb-single/PDF.html", "options": [], "allowBackorder": false, "preorder": false, "inventoryTracked": false, "availableQuantity": -33, "inStock": true, "itemOid": 128754, "itemId": "PDF", "description": "PDF Sampler", "extendedDescription": "", "cost": 1, "weight": null, "length": { "uom": "IN", "value": 0 }, "width": { "uom": "IN", "value": 0 }, "height": { "uom": "IN", "value": 0 }, "attributes": [], "multimedias": [ { "thumbnails": [ { "height": 200, "width": 200, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1363189011276/DEMO/F/D/200-200-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1363189011276/DEMO/F/D/200-200-FDDC193869B9EB22A7ADFA776F613062.jpg" }, { "height": 100, "width": 100, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1368717402788/DEMO/F/D/100-100-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1368717402788/DEMO/F/D/100-100-FDDC193869B9EB22A7ADFA776F613062.jpg" }, { "height": 80, "width": 80, "httpUrl": "http://ultracartthumbs.s3.amazonaws.com/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg", "httpsUrl": "https://s3.amazonaws.com/ultracartthumbs/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg" } ], "type": "Image", "default": true, "imageWidth": 400, "imageHeight": 400, "viewUrl": "http://s3.amazonaws.com/ultracart/im/317BBF705AEB5C0130BD546683051600?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371108852&Signature=RKlBcOafFfPuTGKovA9g%2FRSlAwo%3D", "description": "pdf icon", "code": null, "excludeFromGallery": false } ], "defaultImageUrl": "http://s3.amazonaws.com/ultracart/im/317BBF705AEB5C0130BD546683051600?AWSAccessKeyId=0P4TXH5AKGYC8WHDZFG2&Expires=1371108852&Signature=RKlBcOafFfPuTGKovA9g%2FRSlAwo%3D", "defaultThumbnailUrl": "http://ultracartthumbs.s3.amazonaws.com/1369393305697/DEMO/F/D/80-80-FDDC193869B9EB22A7ADFA776F613062.jpg", "variations": [] }

function relatedItems() {
    var item = jQuery('#itemField').val() || '';
    jQuery.ajax({
      url: '/rest/site/items/' + item + '/relatedItems',
      type: 'get',
      headers: { 'X-UC-Merchant-Id': 'DEMO',
        "cache-control": "no-cache"}, // could also pass merchant id as query parameter named '_mid' or cookie named 'UltraCartMerchantId'
      dataType: 'json'
    }).done(function (items) {
          jQuery('#itemResult').html('<pre>' + JSON.stringify(items, null, '  ') + '</pre>');
        });
  }
  jQuery(document).ready(function () {
    jQuery('#relatedItemsButton').on('click', relatedItems);
  });

<div class='demo'><a class='demo-link' name="demo23"></a>
  <h4 class='title'>Related Items</h4>
  <div class='details'>
    Item Id: <input type="text" id="itemField" value='TSHIRT' size='20' /><br />
    <input type="button" class='demo-button' value="Fetch Item" id="relatedItemsButton" /><br />
    <script type="syntaxhighlighter" class="brush: javascript" id="demo-code-display23"></script>
    Result:
    <div class="results" id="relatedItemsResult"></div>
  </div>
</div>

Server Side Logging

Detailed logs for errors may be captured on the UltraCart system. Optionally, the last 100 calls made may be captured as well.

To use:

Ensure the login used to access secure.ultracart.com has "API Access". This may be granted by the account owner here: Configuration → Manage Users → Edit User.
Once permission is granted, navigate to Developer Tools → Call History Log. It's a link in the Javascript Checkout API section.

Was this page helpful?

Object Model

Site REST API

/rest/site/stateProvinces​

/rest/site/stateProvinceCodes​

/rest/site/storeFront/searchAutoSuggest​

/rest/site/unifiedAffiliateCookieScript​

/rest/site/advertisingSources​

/rest/site/returnPolicy​

/rest/site/allowedCountries​

rest/site/customerIpAddress​

/rest/site/items/search​

/rest/site/items​

/rest/site/items/{item id}​

/rest/site/items/{item id}/relatedItems​
